7.4.3 Device State Diagram

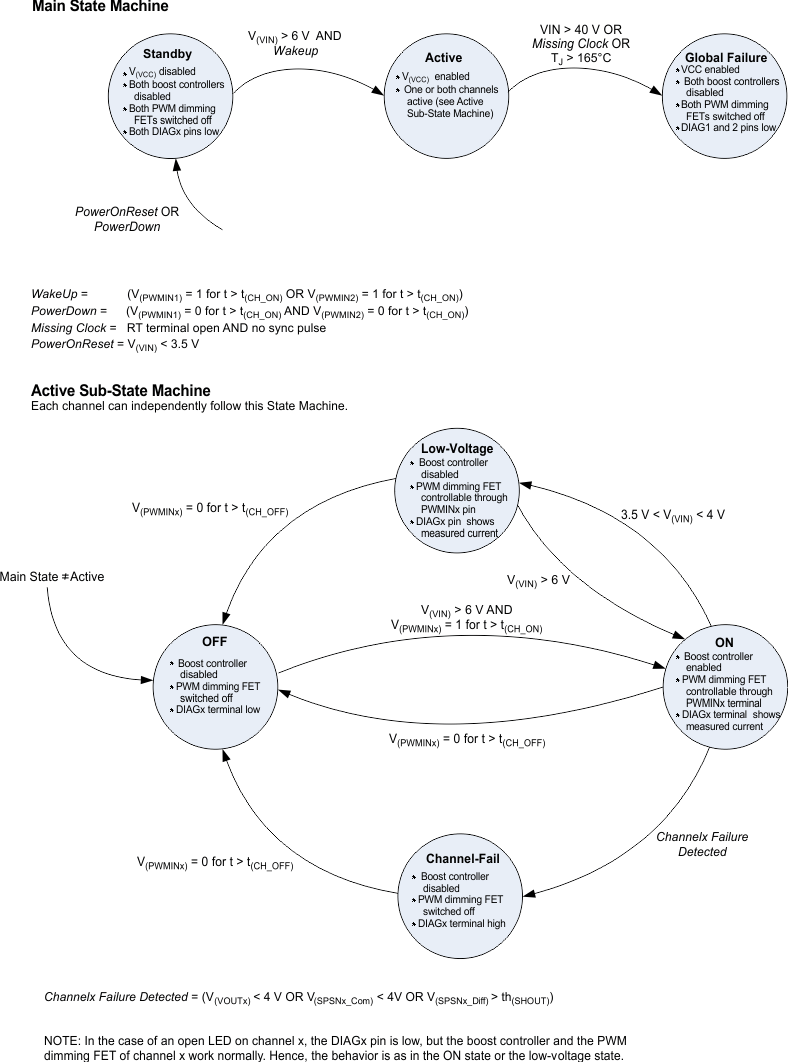

Figure 13 shows the state diagram of the device, with a short description of the device behavior in each state.

TPS92601-Q1 TPS92602-Q1 dev_sta_dia_SLUSBP5.gifFigure 13. Device State Diagram
