9.3.5 Digital Filter

The device uses a linear-phase finite impulse response (FIR) digital filter that performs both filtering and decimation of the digital data stream coming from the modulator. The digital filter is automatically adjusted for the different data rates and always settles within a single cycle. The frequency responses of the digital filter are shown in Figure 28 to Figure 32 for different output data rates. The filter notches and output data rate scale proportionally with the clock frequency. The internal oscillator can vary over temperature as specified in the Electrical Characteristics table. The data rate or conversion time, respectively, and consequently also the filter notches vary proportionally.

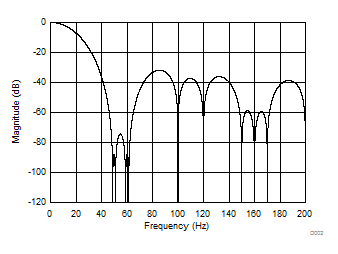

ADS1219 D002.gifFigure 28. Filter Response
(DR = 20 SPS)
ADS1219 D004.gifFigure 30. Filter Response
(DR = 90 SPS)
ADS1219 D008_sbas751.gifFigure 32. Filter Response
(DR = 1 kSPS)
ADS1219 D001.gifFigure 29. Detailed View of the Filter Response
(DR = 20 SPS)
ADS1219 D006.gifFigure 31. Filter Response
(DR = 330 SPS)
