10.2.1.1 35 mm² Solution Size (Single Sided)

The following layout example uses 0805 case size components for the input and output capacitors and 0402 case size components for the rest of the passives.

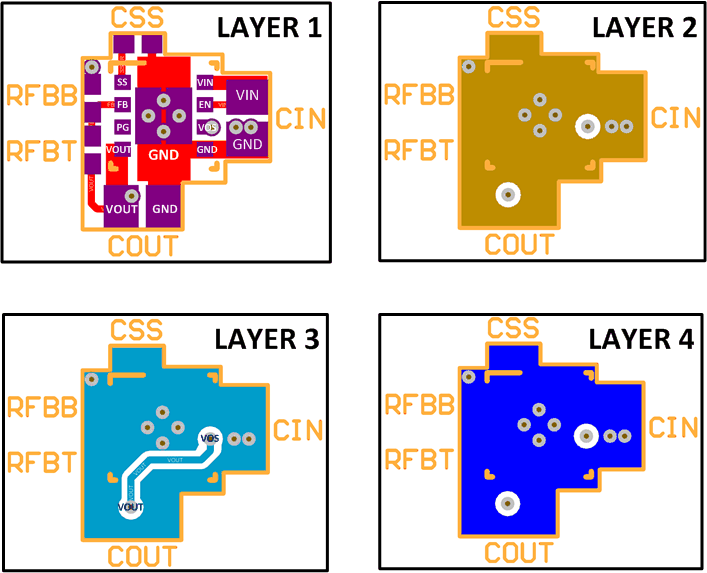

LMZ21701 Compact_PCB_Layout.gifFigure 82. 35 mm² Solution Size (Single Sided)
