5.8 Typical Characteristics
Figure 5-3 UVLO
Thresholds vs Temperature

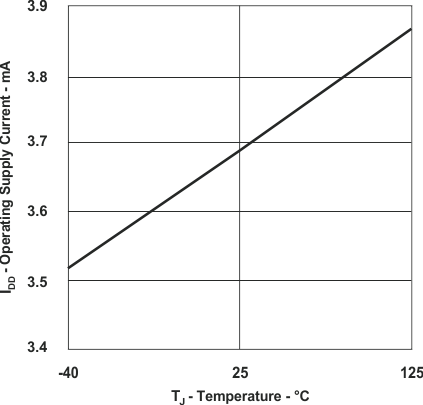

Figure 5-5 Supply Current vs Temperature

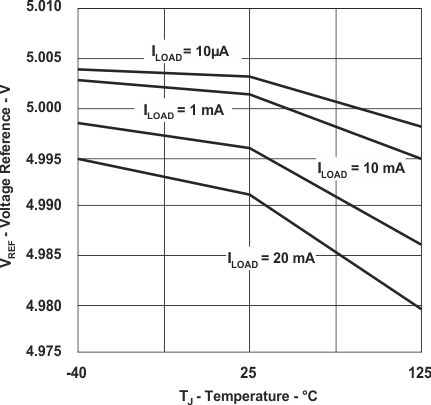

Figure 5-7 Voltage Reference (VDD = 12V) vs Temperature
Figure 5-9 Short-Circuit Current vs Temperature
Figure 5-11 Nominal Switching Frequency vs Temperature

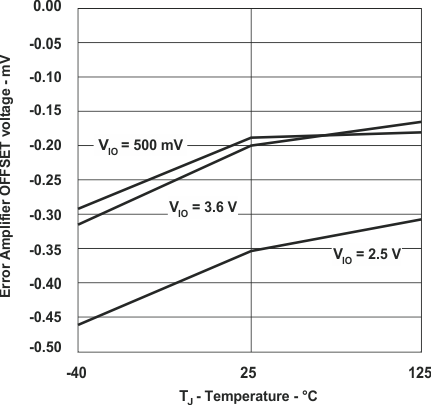

Figure 5-13 Error
Amplifier Offset Voltage vs Temperature
Figure 5-15 ISS Charge Current vs Temperature

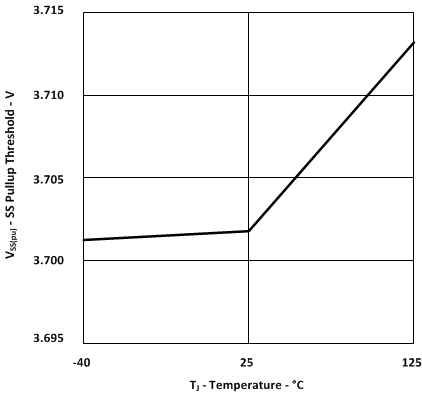

Figure 5-17 SS
Pullup Threshold vs Temperature

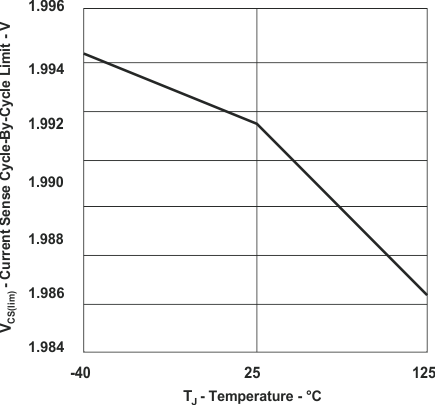

Figure 5-19 Current Sense Cycle-by-Cycle Limit vs Temperature

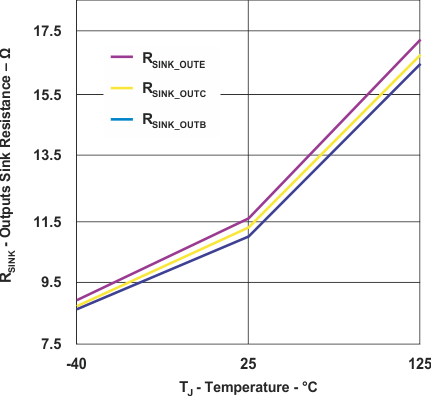

Figure 5-21 Outputs Sink Resistance vs Temperature

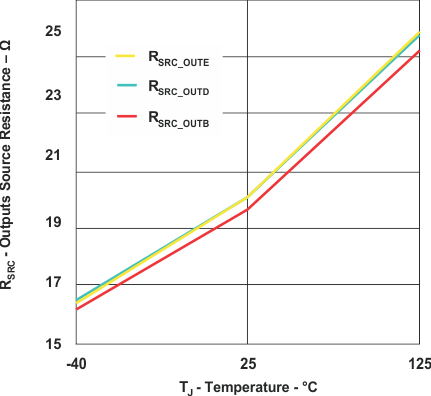

Figure 5-23 Outputs Source Resistance vs Temperature

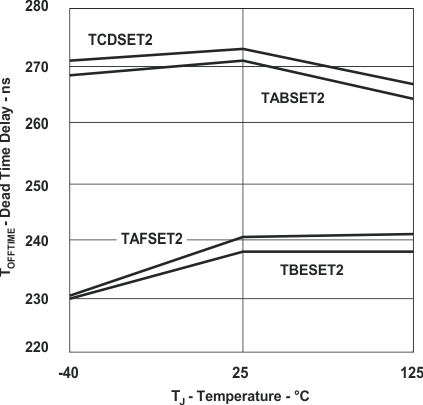

Figure 5-25 Dead
Time Delay vs Temperature
Figure 5-27 DCM
Threshold vs Temperature
Figure 5-4 UVLO

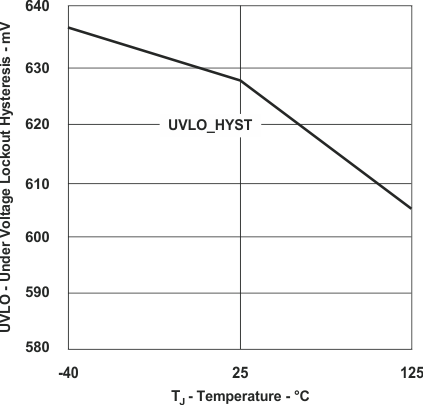

Hysteresis vs Temperature

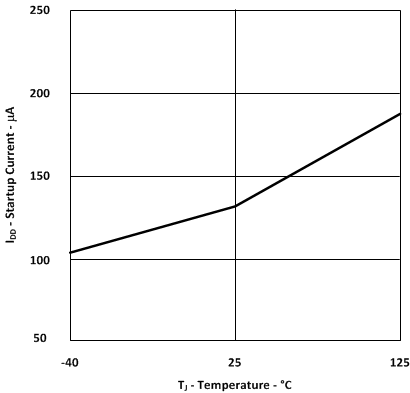

Figure 5-6 Start-Up Current vs Temperature
Figure 5-8 Line
Voltage Regulation (ILOAD = 10mA) vs Temperature

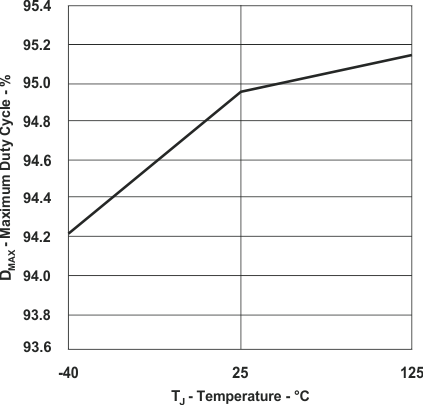

Figure 5-10 Maximum Duty Cycle vs Temperature
Figure 5-12 Maximum Switching Frequency vs Temperature
Figure 5-14 Voltage Error Amplifier (Open-Loop Gain) vs Temperature

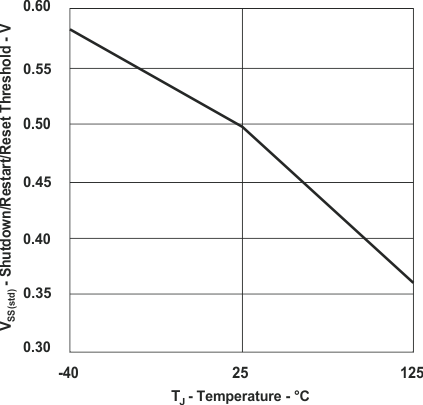

Figure 5-16 Shutdown, Restart, and Reset Threshold vs Temperature
Figure 5-18 SS
Clamp Voltage vs Temperature

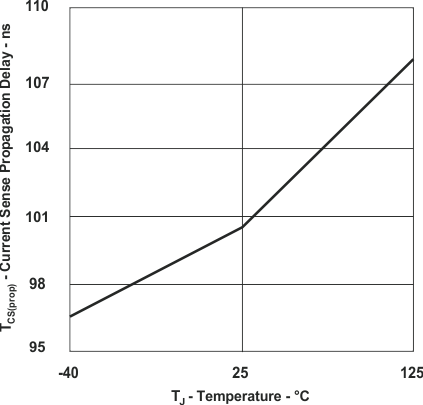

Figure 5-20 Current Sense Propagation Delay vs Temperature
Figure 5-22 Outputs Sink Resistance vs Temperature
Figure 5-24 Outputs Source Resistance vs Temperature

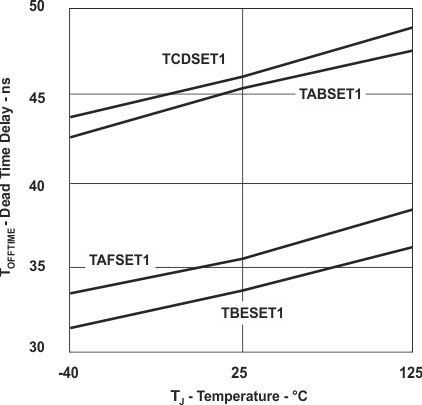

Figure 5-26 Dead
Time Delay vs Temperature
