7.8 Typical Characteristics

TPS1HA08-Q1 SLVSDF0_DG1.gif
VBB = 13.5 V to 0 V ROUT = 1 kΩ VDIAG__EN = 0 V
VEN = 5 V
Figure 3. Falling Undervoltage Lockout (VUVLOF) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG3.gif
VOUT = 0 V VEN = 0 V VDIAG_EN = 0 V
Figure 5. Output Leakage Current (IOUT(standby)) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG5.gif
IOUT = 200 mA VEN = 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 7. On Resistance (RON) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG8.gif
ROUT = 2.6 Ω VEN = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 9. Turn-on Delay Time (tDR) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG10.gif
ROUT = 2.6 Ω VEN = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 11. VOUT Slew Rate Rising (SRR) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG12.gif
ROUT = 2.6 Ω VEN = 0 V to 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V

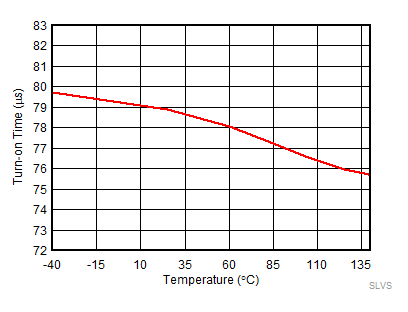

Figure 13. Turn-on Time (tON) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG14.gif
ROUT = 2.6 Ω VEN = 0 V to 5 V and 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 15. Turn-on and Turn-off Matching (tON - tOFF) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG16.gif
VSEL1 = VSEL2 = 0 V VEN = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ TA = 25°C
Figure 17. Current Sense Output Current (ISNSI) vs Load Current (IOUT) across VBB
TPS1HA08-Q1 SLVSDF0_DG18.gif
VSEL1 = VSEL2 = 5 V VEN = 0 V VDIAG_EN = 5 V
RSNS = 1 kΩ IOUT = 0 A

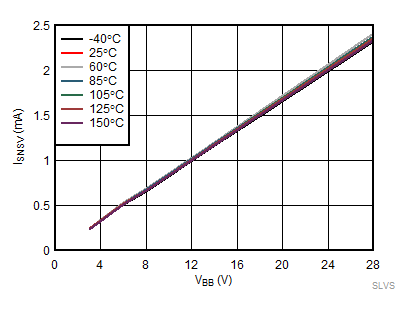

Figure 19. Voltage Sense Output Current (ISNSV) vs VBB
TPS1HA08-Q1 SLVSDF0_DG20.gif
VSEL1 = VSEL2 = 0 V VEN = 5 V VDIAG_EN = 5 V
RSNS = 10 kΩ IOUT = 4 A
Figure 21. Sense Pin Clamp Voltage (VSNSCLAMP) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG22.gif
VEN = 0 V VOUT = 0 V to 5 V IOUT = 0 A
VDIAG_EN= 5 V VSEL1 = VSEL2 = 0 V
Figure 23. Open Load Detection Voltage (VOL) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG24.gif
VEN = 0 V to 3.3 V VOUT = 0 V VDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 25. VIH vs Temperature
TPS1HA08-Q1 SLVSDF0_DG26.gif
VEN = 0.8 V VOUT = 0 V VDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 27. IIL vs Temperature
TPS1HA08-Q1 SS1_TEK00289_SLVSD84.gif
ROUT = 2.6 Ω RSNS = 1 kΩ VDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 29. Turn-on Time (tON)
TPS1HA08-Q1 SS3_TEK00290_SLVSD84.gif
ROUT = 2.6 Ω RSNS = 1 kΩ VDIA_EN= 0 V to 5 V
VSEL1 = VSEL2 = 0 V
Figure 31. ISNS Settling Time (tSNSION1) on DIA_EN Transition
TPS1HA08-Q1 SS6_TEK00294_SLVSD84.gif
VOUT = VBB RSNS = 1 kΩ VSEL1 = VSEL2 = 0 V
VEN = 0 V VDIAG_EN = 5 V
Figure 33. Open Load Detection Time (tOL2) on Rising DIAG_EN
TPS1HA08-Q1 C_PermShort.gif
VBB = 13.5 V C Device Version VOUT = 0 V
VEN = 0 V to 5 V TA = 25°C
Figure 35. Short Circuit Behavior with C Device Version
TPS1HA08-Q1 SLVSDF0_DG2.gif
VOUT = 0 V VEN = 0 V VDIAG_EN = 0 V

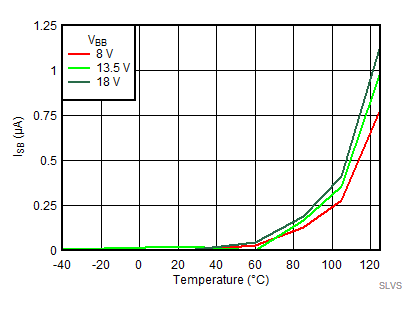

Figure 4. Standby Current (ISB) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG4.gif
IOUT = 0 A VEN = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ VSEL1 = VSEL2 = 0 V
Figure 6. Quiescent Current (IQ) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG6.gif
IOUT = 200 mA VEN = 5 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V

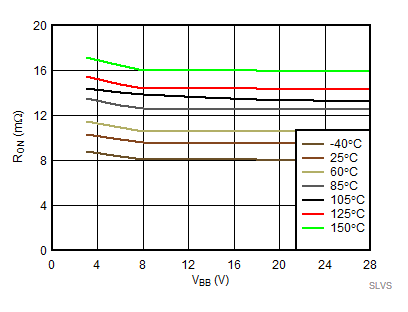

Figure 8. On Resistance (RON) vs VBB
TPS1HA08-Q1 SLVSDF0_DG9.gif
ROUT = 2.6 Ω VEN = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 10. Turn-off Delay Time (tDF) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG11.gif
ROUT = 2.6 Ω VEN = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 12. VOUT Slew Rate Falling (SRF) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG13.gif
ROUT = 2.6 Ω VEN = 5 V to 0 V VDIAG_EN = 0 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 14. Turn-off Time (tOFF) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG15.gif
VSEL1 = VSEL2 = 0 V VEN = 5 V VDIAG_EN = 5 V
RSNS = 1 kΩ VBB = 13.5 V
Figure 16. Current Sense Output Current (ISNSI ) vs Load Current (IOUT) across Temperature
TPS1HA08-Q1 SLVSDF0_DG17.gif
VSEL1 = 5 V VSEL2 = 0 V VDIAG_EN = 5 V
RSNS = 1 kΩ VEN = 0 V
Figure 18. Temperature Sense Output Current (ISNST) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG19.gif
VSEL1 = VSEL2 = 0 V VEN = 0 V VDIAG_EN = 5 V
RSNS = 500 Ω VOUT Floating

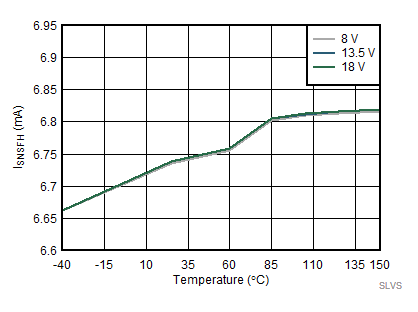

Figure 20. Fault High Output Current (ISNSFH) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG21.gif
VBB = 13.5 V VOUT = 0 V VDIAG_EN = 0 V
Device Version C VEN = 5 V VLATCH = 5 V
Figure 22. Current Limit (ICL) vs Temperature
TPS1HA08-Q1 SLVSDF0_DG23.gif
VEN = 3.3 V to 0 V VOUT = 0 V VDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 24. VIL vs Temperature
TPS1HA08-Q1 SLVSDF0_DG25.gif
VEN = 0 V to 3.3 V and 3.3 V to 0 V VOUT = 0 V VDIAG_EN = 0 V
ROUT = 1 kΩ

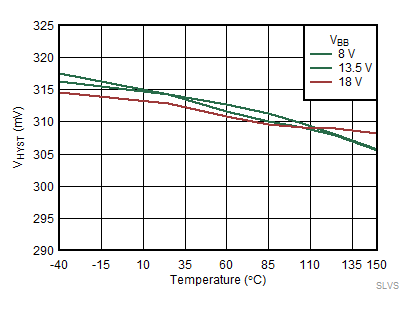

Figure 26. VIHYS vs Temperature
TPS1HA08-Q1 SLVSDF0_DG27.gif
VEN = 2 V VOUT = 0 V VDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 28. IIH vs Temperature
TPS1HA08-Q1 SS2_TEK00288_SLVSD84.gif
ROUT = 2.6 Ω RSNS = 1 kΩ VDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 30. Turn-off Time (tOFF) and Sense Settle Time (tSNSION2)
TPS1HA08-Q1 SS4_TEK00291_SLVSD84.gif
IOUT = 1 A to 5 A RSNS = 1 kΩ VDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 32. ISNS Settling Time (tSETTLEH) on Rising Load Step
TPS1HA08-Q1 BPermShort.gif
VBB = 13.5 V B Device Version VOUT = 0 V
VEN = 0 V to 5 V TA = 25°C
Figure 34. Short Circuit Behavior with B Device Version
TPS1HA08-Q1 Inductive Repetitive.gif
VBB = 13.5 V TA = 125°C LOUT = 5 mH
VEN = 0 V to 5 V, 5 V to 0 V
Figure 36. Inductive Load Demagnetization
