8.7 Typical Characteristics

CIN = 1 µF, CPMID= 10 µF, CLSLDO = 2.2 µF, CBAT = 1 µF (unless otherwise specified)

VIN = 5 VPMID_REG_CTRL = 111 (Pass-Through)
Figure 8-1 Battery Regulation Voltage Accuracy vs. VBATREG Setting
VIN = 5 VVBAT = 2.7 VICHARGE_RANGE = 0
Figure 8-3 Pre-Charge Current Accuracy vs. IPRECHARGE setting (ICHARGE_RANGE = 0)
VBUS = 5 V
Figure 8-5 LS/LDO Switch On Resistance vs. VINLS
VIN = 0 VVBAT = 3.6 VVINLS = VPMID
Figure 8-7 LDO Load Regulation (VLDO = 1.8 V)
VBAT = 4.4 VILOAD = 150 mA
Figure 8-9 LDO Line Regulation (VLDO = 1.2 V)
VBAT = 4.4 VILOAD = 150 mA
Figure 8-11 LDO Line Regulation (VLDO = 3.3 V)
VBAT = 0 V
Figure 8-13 PMID Load Regulation
VBAT = 3.6 VVIN = 5 V
Figure 8-15 Charge Current Thermal Regulation
VIN = 5 VVBAT = 3.6 VICHARGE_RANGE = 1
Figure 8-2 Charge Current Accuracy vs. ICHARGE Setting
VBUS = 5 VVBAT = 2.7 VICHARGE_RANGE = 1
Figure 8-4 Pre-Charge Current Accuracy vs. IPRECHARGE Setting (ICHARGE_RANGE = 1)
VIN = 0 VVBAT = 3.6 VVINLS = VPMID

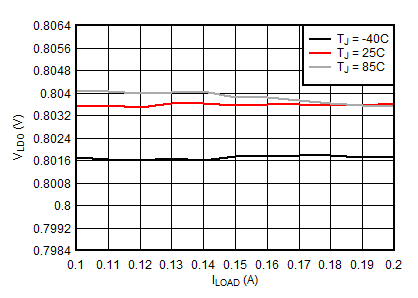

Figure 8-6 LDO Load Regulation (VLDO = 0.8 V)
VIN = 0 VVBAT = 3.6 VVINLS= VPMID
Figure 8-8 LDO Load Regulation (VLDO = 3.3 V)
VBAT = 4.4 VILOAD = 150 mA
Figure 8-10 LDO Line Regulation (VLDO = 1.8 V)
VBAT = 4.4 VILOAD = 150 mA
Figure 8-12 LDO Line Regulation (VLDO = 3.6 V)
VBAT = 3.6 VVIN = 5 V
Figure 8-14 PMID Load Regulation vs. Temperature
