10.2.3 Typical Application with MCU Programmable Charge Current

In some application cases, the charge current needs to be controlled by a MCU. In those cases, the GPIOs of the MCU can be used for on/off control of the charge current setting resistors RICHG1 and RICHG2 as shown in Figure 10-9. With GPIO1 and GPIO2 on/off control, three levels of charge current can be programmed. If the charge current needs to be controlled smoothly in a wide range, a PWM output of the MCU can be used to generate an average DC voltage output to program the charge current as show in Figure 10-10. The charge current can be calculated as: (1V - VPWM) / (RICHG1 + RICHG2). VPWM is the averaged DC voltage of the PWM output and it must be lower than 1 V. The regulated voltage at the ICHG pin is 1 V.

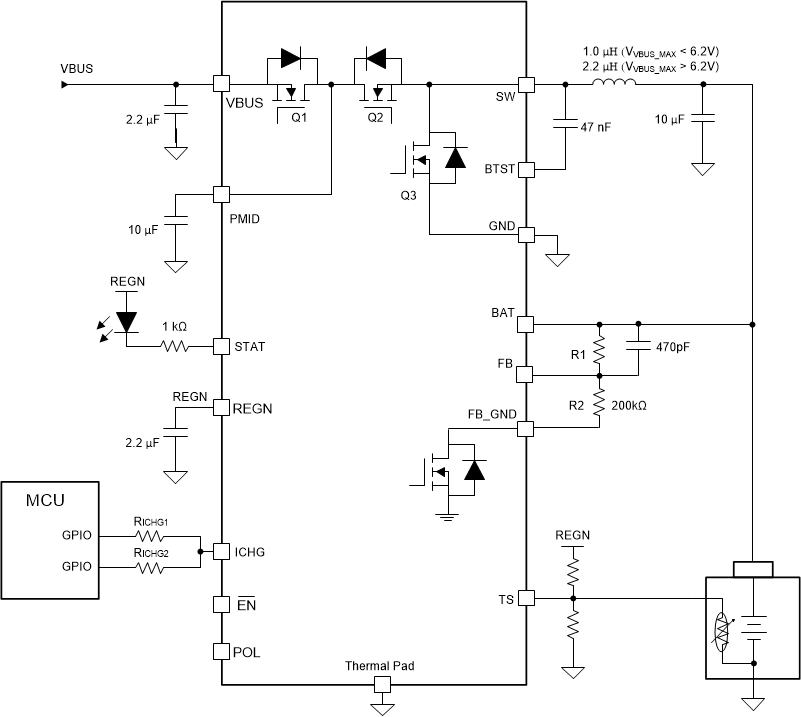

GUID-20201116-CA0I-KTJS-QDMC-PGKPMLBR2P1K-low.gif Figure 10-9 Typical Application with MCU Programmed Charge Current
(1-µH inductor is recommended if maximum input voltage VVBUS_MAX < 6.2V; 2.2-µH inductor is recommended if maximum input voltage VVBUS_MAX > 6.2V )

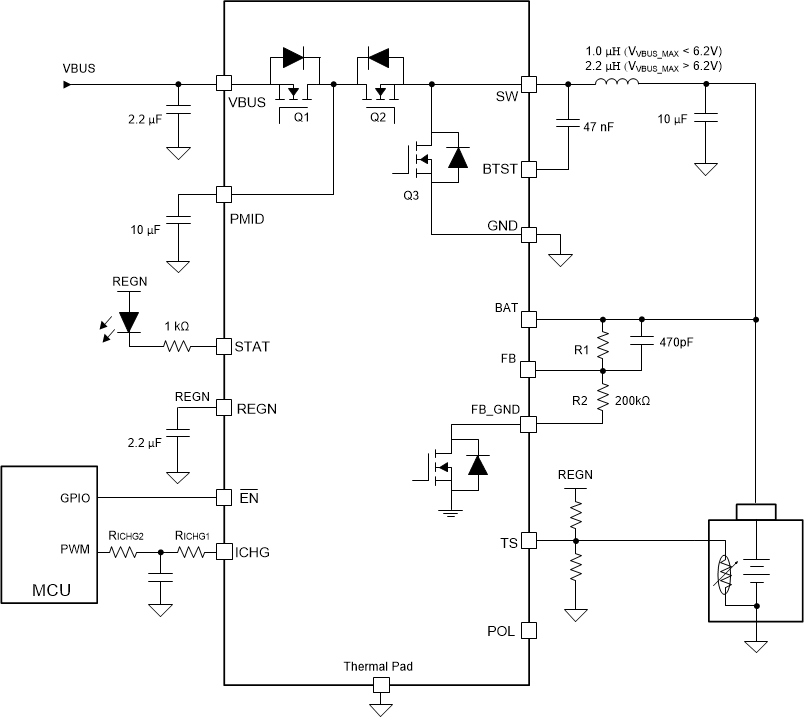

GUID-20201116-CA0I-DTNQ-ZFSD-SHMXMGNJDCML-low.gif Figure 10-10 Typical Application with MCU Programmed Charge Current
(1-µH inductor is recommended if maximum input voltage VVBUS_MAX < 6.2V; 2.2-µH inductor is recommended if maximum input voltage VVBUS_MAX > 6.2V )
