6.2 Multiplexing Ethernet

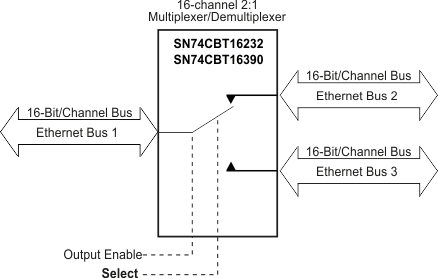

Figure 6-3 shows a fairly common application in telecom designs where two 16-bit/channel Ethernet buses are being MUXed and deMUXed to one commonly-shared Ethernet bus.

GUID-20211102-SS0I-QKDS-7HBN-SDRTSHXRDPNF-low.gif Figure 6-3 Multiplexing Ethernet
