5.3.1.1 VOvs VI

Figure 5-10 and Figure 5-11 show the VO vs VI characteristics of the CB3Q3306A at different values of VCC and at different temperatures. For VCC = 3.6 V, the output exactly follows the input from 0 V to 5 V. Because of this characteristic, CB3Q devices can be used for switching analog and digital signals, ranging from 0 V to 5 V. For VCC = 2.3 V, the gate voltage produced by the charge-pump circuit is reduced to about 4 V. So, the output approximately follows the input from 0 V to 3.3 V and becomes constant above 3.3 V.

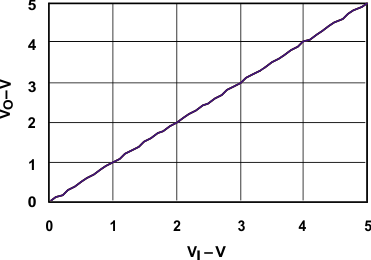

GUID-19B27499-8890-416B-A30A-D2CA1C442F94-low.gifFigure 5-10 VOvs VI for the CB3Q3306A at VCC = 3.6 V, TZ = 85°C
GUID-EBD79606-906E-456A-BBC7-7D7514111C08-low.gifFigure 5-11 VOvs VI for the CB3Q3306A at VCC = 2.3 V, TA = 85°C
