5.1 Simple Bidirectional Op-Amp Interface

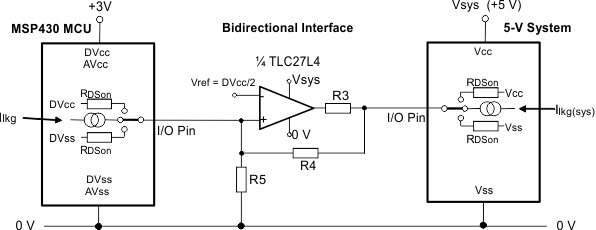

If true I/O performance is needed between the MSP430 MCU and a 5-V system, then the interface circuit in Figure 9 can be used. The op amp works as a flip-flop: the I/O pin currently working as an output controls the state of this flip-flop. The other I/O pin must be an input.

bidirectional-interface-between-3-v-and-5-v-systems.gifFigure 9. Bidirectional Interface Between 3-V and 5-V Systems

The worst-case design equations for the resistors R3, R,4 and R5 follow. Equation 21 ensures a high level at the MSP430 input.

Equation 21. R4 R5 < (1 -2 p ) × V ( sysH ) min V ref ( max ) -1

Equation 22 prevents voltages higher than DVCC at the MSP430 input.

Equation 22. R4 R5 > (1 +2 p ) × V ( sysH ) max DV CC ( min ) -1

Equation 23 ensures high level at the input of the MSP430 MCU with the MSP430 and op amp leakage currents Ilkg and Ilkg(Op).

Equation 23. R4 < V ( sysH ) min - V ref ( max ) × 1 + R4 R5 × (1 +2 p ) I lkg + I lkg ( Op ) × (1 + p )

Equation 24 ensures a high level at the external system input with its leakage current Ilkg(sys).

Equation 24. R3 < V ( sys ) min - V ( sys + ) min (1 + p ) × I lkg ( sys ) + V ( sys + ) min - V ref ( min ) R4 × (1 + p )
  • Vref = Reference voltage for the input level decision (V)
  • Ilkg = Input leakage current of an MSP430 input (A)
  • Ilkg(Op) = Input leakage current of the opamp input (A)
  • Ilkg(sys) = Input leakage current of the system input (A)

Example: Bidirectional interface for the following data: V(sys) = 5 V ±10%, V(sysH)min = 4 V, V(sys+)max = 3.5 V, Ilkg(sys) = ±1 µA, Ilkg(Op) = ±700 pA, Ilkg = ±50 nA, Vref = 1.5 V ±5%. The resistor tolerance is p = ±5%. The minimum supply voltage of this example is DVCC(min) = 2.7 V (3.0 V – 10%).

Equation 25. R4 R5 < (1 -2 p ) × V ( sysH ) min V ref ( max ) -1 = (1 -2 ×0 .05 ) × 4 V 1 .575 V -1 =1 .386
Equation 26. R4 R5 > (1 +2 p ) × V ( sysH ) max DV CC ( min ) -1 = (1 +2 ×0 .05 ) × 5 .5 V 2 .7 V -1 =1 .14

The median value of the R4 and R5 limits is Equation 27.

Equation 27. R4 R5   =   1 .38   +  1 .14 2   =  1 .26
Equation 28. R4 < V ( sysH ) min - V ref ( max ) × 1 + R4 R5 × (1 +2 p ) I lkg + I lkg ( Op ) × (1 + p ) = 4 .0 V -1 .575 V × 1 +1 .26 × (1 +2 ×0 .05 ) 50 nA +700 pA × (1 +0 .05 ) =4 .55 MΩ

R4 is chosen to be 2 MΩ.

Resistor R5 is calculated as Equation 29.

Equation 29. R5 = R4 1 .26 = 2 MΩ 1 .26 =1 .59 MΩ
Equation 30. R3 < V ( sys ) min - V ( sys + ) min (1 + p ) × I lkg ( sys ) + V ( sys + ) min - V ref ( min ) R4 × (1 + p ) = 4 .5 V -3 .5 V (1 +0 .05 ) × 1 µ A + 3 .5 V -1 .425 V 2 MΩ × (1 +0 .05 ) =479 kΩ

The three chosen resistors are: R3 = 330 kΩ, R4 = 2 MΩ, R5 = 1.6 MΩ
