5.1.3 Missing Anti-Aliasing Filters

The frequency content of the input signal can repeat itself around multiples of the ADC sampling rate - the duplicates are aliases of the original signal. If the anti-aliasing filters are missing, these aliases can increase noise in the digital output because their frequency exceeds the Nyquist rate. Remember that the sampling rate is actually the modulation frequency, so the recommended cut-off frequency of the anti-aliasing filters is typically 100 times less than the modulation frequency. Typically, the anti-aliasing filters are implemented using external first- or second-order resistor-capacitor (RC) filters that are connected to each differential input. Figure 5-2 shows how anti-aliasing filters are connected to the differential ADC inputs in a PIR motion detector design. To learn more, watch the Aliasing and Anti-Aliasing Filters training video.

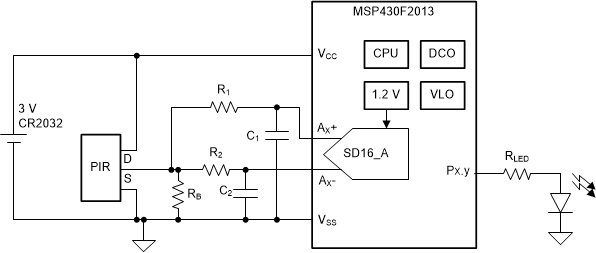

GUID-20200922-CA0I-RVXK-LT64-VZJTJ4QCVVW8-low.gif Figure 5-2 Anti-Aliasing Filters Example
