1.2 HWBIST Failure Response

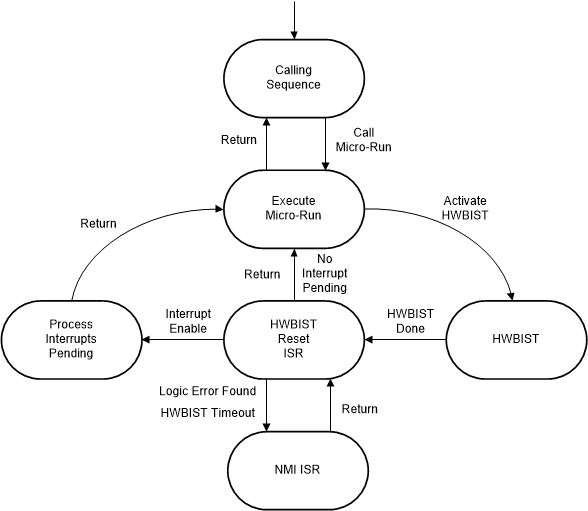

As mentioned earlier, when the C28x CPU starts the HWBIST controller, the CPU shuts down so that the logic inside can be tested by the HWBIST engine. Figure 1-3 shows the flow of this action in the state diagram.

GUID-19A04843-DABF-41B4-B17C-6001C597498D-low.gifFigure 1-3 HWBIST State Diagram

When the HWBIST detects a failure, it sets the appropriate bit in the HWBIST Status register and exits the HWBIST operation. This error can come in the form of the following:

  • Logic failure was detected
  • HWBIST controller timed out without the micro-run completing

In either case, the HWBIST controller saves the failure information into the HWBIST status register, generates a NMI to the processor, and sets the appropriate bits in the NMI flag register. In a dual processor device, the HWBIST controller generates NMIs to each processor.
