3.2.2 In Depth

There are multiple definitions for division and modulo operations according to the programming language and computer science literature, each of these definitions provide different mathematical properties that can be beneficially employed in the application context. Truncated division is the standard division definition widely used in many programming languages like C. In this definition, the remainder will always have the sign of numerator. The transfer function of truncated division is shown in #GUID-1C361B93-A3E6-4271-9755-F10089434F72 , as can be observed that the function is non-periodic since there is a “platform” around zero point.

GUID-6847BF55-BE35-4432-AE1B-0D3D0B18BDB3-low.gif Figure 3-3 Truncated Division Function

Due to the non-linearity around zero point, the function is not preferred in control applications. Thus non-conventional definitions of division and modulo operations are sometimes preferred for better linearity and periodicity. The transfer function of Floored/Modulo (#GUID-3711F51E-11D5-4BC5-B54C-C55B9B164B17) and Euclidean division (#GUID-21BD91CD-CBC6-4964-8DC5-5E15CA8010EE) functions are shown below. In the modulo division function the remainder will always have the sign of denominator, thus the function is linear around the zero point. In the Euclidean division, the remainder is always positive so the division function is linear around zero point and also the modulo function is periodic.

GUID-85F21690-DDB7-4986-8624-9CCE3ECBB5BC-low.gif Figure 3-4 Floored Division Function

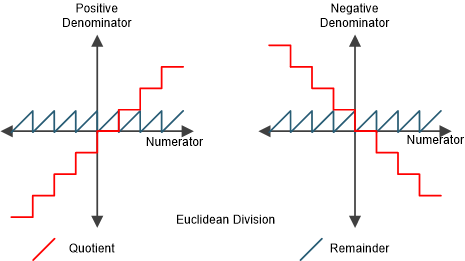

GUID-E3F35F13-8BBD-4D02-835F-96D6DDB38D12-low.gif Figure 3-5 Euclidean Division Function

The C28x CPU has added specialized instructions to enable applications to implement the above division and modulo definitions efficiently in hardware. These new instructions used to enable integer division are interruptible, have very low latency and support different types of operations (ui32/ui32, i32/ui32, i64/i32, ui64/ui32, ui64/ui64, i64/i64, and so forth). The cycles count for the different types of division operations and sizes of the operands achieved using Fast Integer Division unit are listed in and are also compared with the cycles without FID module in Table 3-2. As evident from the table, the FID unit provides several folds improvement in performance for different types of division operations which helps in minimizing the latency of control loop calculations.

Table 3-2 Integer Division With and Without the FID Module
Division Operation Using C Operator '/' Without FASTINTDIV Hardware on C28x Using Intrinsics With FASTINTDIV Hardware + C28x Improvement Factor
i16/i16 traditional 52 16 3.3
i16/i16 Euclidean 56 14 4.0
i16/i16 Modulo 56 14 4.0
u16/u16 56 14 4.0
i32/i32 traditional 59 13 4.5
i32/i32 Euclidean 63 14 4.5
i32/i32 Modulo 63 14 4.5
i32/u32 traditional 37 14 2.6
i32/u32 Modulo 41 14 2.9
u32/u32 37 12 3.1
i32/i16 traditional 60 18 3.3
i32/i16 Euclidean 64 16 4.0
i32/i16 Modulo 64 16 4.0
u32/u16 38 13 2.9
i64/i64 traditional #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 78-2631 42 1.9-62.6
i64/i64 Euclidean #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 82-2635 42 2.0-62.7
i64/i64 Modulo #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 82-2635 42 2.0-62.7
i64/u64 traditional #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 54-2605 42 1.3-62.0
i64/u64 Euclidean #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 58-2609 42 1.4-62.1
i64/u6 Modulo#GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 58-2609 42 1.4-62.1
u64/u64/ #GUID-30F344F4-FCE7-48E2-B3FC-9759AA6E0206 53-2548 42 1.3-60.7
(1) The FASTINTDIV hardware implements 64-bit integer division with optimal fixed number of cycles for fast deterministic behavior. MCUs without such hardware acceleration, implement 64-bit integer division using generic CPU instructions that are not optimized for division or use algorithm techniques that optimize execution based on the value of the numerator and denominator. For instance, if the value of the numerator and denominator is less than 32-bits the software will execute a 32-bit division. Hence, the number of cycles can vary significantly and for large numerator and denominator values, overall cycles are much higher than achievable by the FASTINTDIV accelerator
