7.3.1.1 NRZ Mode

Non-return-to-zero (NRZ) mode is the standard zero-order hold output waveform. The sample is output from the DAC and held until the next sample is output. The timing diagram for NRZ mode is given in Figure 7-1. This output waveform can be thought of as a rectangular filter in time domain resulting in a sinc response in the frequency domain. The result is a frequency response that has significant power loss in the 2nd and 3rd Nyquist zones and a null at the sampling rate. It is meant for 1st Nyquist operation only. A plot of the frequency response of NRZ mode is shown in Figure 7-2.

GUID-0754F6E9-25C9-4B1C-BFE4-04386D751EBB-low.gifFigure 7-1 NRZ Mode Timing Diagram

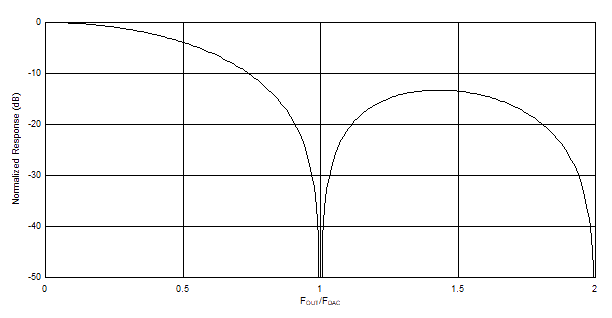

GUID-53AD32C4-37D0-429F-888A-95A6EE7C6CFF-low.gifFigure 7-2 NRZ Mode Output Waveform Frequency Response
