Pin Assignments and Terminal Functions

Figure 3-1 shows the pin assignments for the PCM2912A. Table 3-1 lists the terminal functions.

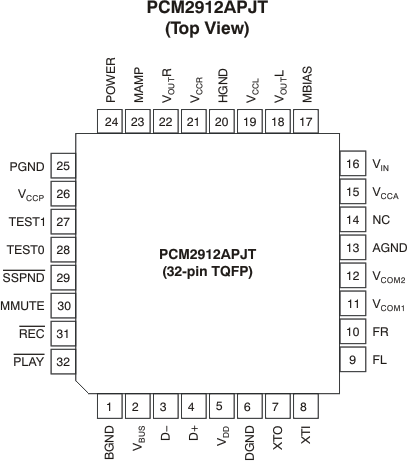

GUID-1D3A50C2-5B6B-4875-95FB-B4D7712121FB-low.gif Figure 2-1 PCM2912A Pin Assignments
Table 2-1 PCM2912A Terminal Functions
Name TQFP-36
Terminal
I/O Description
BGND 1 Reference for internal regulator
VBUS 2 Connect to USB power (VBUS)
D– 3 I/O USB differential input/output minus
D+ 4 I/O USB differential input/output plus
VDD 5 Digital power supply
DGND 6 Digital ground
XTO 7 O Crystal oscillator output
XTI 8 I Crystal oscillator input
FL 9 External filter pin of left channel (optional)
FR 10 External filter pin of right channel (optional)
VCOM1 11 Common voltage for ADC, DAC and analog front-end (VCCA/2). Decoupling capacitor is connected to AGND.
VCOM2 12 Common voltage for headphone (VCCA/2). Decoupling capacitor is connected to AGND.
AGND 13 Analog ground
NC 14 Not connected
VCCA 15 Analog power supply
VIN 16 I ADC microphone input
MBIAS 17 O Microphone bias output (0.75 VCCA)
VOUTL 18 O Headphone output for L-channel
VCCL 19 Analog power supply for headphone amplifier of L-channel
HGND 20 Analog ground for headphone amplifier
VCCR 21 -– Analog power supply for headphone amplifier of R-channel
VOUTR 22 O Headphone output for R-channel
MAMP 23 I Microphone preamplifier gain control (LOW: Preamplifier off; HIGH: Preamplifier on = +20 dB)
POWER 24 I Power consumption declaration select pin (LOW: 100 mA; HIGH: 500 mA)
PGND 25 Analog ground for microphone bias, microphone amplifier, and PGA
VCCP 26 Analog power supply for PLL
TEST1 27 I Test pin. Must be set to high.
TEST0 28 I Test pin. Must be set to low.
SSPND 29 O Suspend flag (LOW: Suspend; HIGH: Operational state)
MMUTE 30 I Microphone mute control, active high (LOW: Mute off; HIGH: Mute on)
REC 31 O Status output for record (LOW: Record; FLASH: Mute on record; HIGH: Stop)
PLAY 32 O Status output for playback (LOW: Playback; FLASH: Mute on playback; HIGH: Stop)
