6.6 Typical Characteristics

at TJ = –40°C to +150°C, VIN = 14 V, and VEN ≥ 2 V (unless otherwise noted)
TPS7B81 shutdown_current_vs_temp.gif
VEN = 0 V
Figure 1. Shutdown Current vs Ambient Temperature
TPS7B81 iq_vs_temp_3v3.gif
VOUT = 3.3 V
Figure 3. Quiescent Current vs Ambient Temperature
TPS7B81 dropout_vs_iout_3v3.gif
VOUT = 3.3 V, DRV package
Figure 5. Dropout Voltage vs Output Current
TPS7B81 dropout_vs_temp_3v3.gif
VOUT = 3.3 V
Figure 7. Dropout Voltage vs Ambient Temperature
TPS7B81 accuracy_vs_temp_3v3.gif
VOUT = 3.3 V, IOUT = 1 mA
Figure 9. Output Voltage vs Ambient Temperature
TPS7B81 25_to_150_acc_hist_v2.gif
3.3-V and 5-V options, IOUT = 1 mA
Figure 11. Temperature Drift Histogram (25ºC to 150ºC)
TPS7B81 accuracy_vs_vin_3v3.gif
VOUT = 3.3 V, IOUT = 1 mA
Figure 13. Output Voltage vs Input Voltage
TPS7B81 enable_voltage_vs_temp.gif
Figure 15. Enable Voltage vs Ambient Temperature
TPS7B81 uvlo_vs_temp.gif
Figure 17. UVLO vs Ambient Temperature
TPS7B81 D004_line_transient.gif
VOUT = 3.3 V, CIN = 0 µF, COUT = 1 µF,
IOUT = 100 mA, slew rate = 1 V/µs
Figure 19. Line Transient
TPS7B81 psrr_5v.gif
VOUT = 5 V, CIN = 0 µF, COUT = 10 µF
Figure 21. PSRR vs Frequency
TPS7B81 noise.gif
CIN = 0.1 µF, COUT = 10 µF
Figure 23. Noise vs Frequency
TPS7B81 iq_vs_temp_5v.gif
VOUT = 5 V
Figure 2. Quiescent Current vs Ambient Temperature
TPS7B81 dropout_vs_iout_5v.gif
VOUT = 5 V, DRV package
Figure 4. Dropout Voltage vs Output Current
TPS7B81 dropout_vs_temp_5v.gif
VOUT = 5 V
Figure 6. Dropout Voltage vs Ambient Temperature
TPS7B81 accuracy_vs_temp_5v.gif
VOUT = 5 V
Figure 8. Output Voltage vs Ambient Temperature
TPS7B81 neg40_to_25_acc_hist_v2.gif
3.3-V and 5-V options, IOUT = 1 mA
Figure 10. Temperature Drift Histogram (–40°C to +25°C)
TPS7B81 accuracy_vs_vin_5v.gif
VOUT = 5 V, IOUT = 1 mA
Figure 12. Output Voltage vs Input Voltage

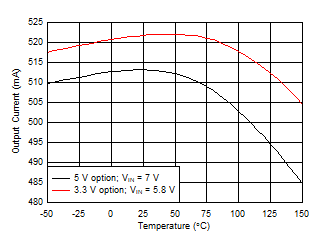

TPS7B81 current_limit_vs_temp.gif
VOUT is shorted to 90% × VOUT(NOM)
Figure 14. Output Current Limit vs Ambient Temperature
TPS7B81 enable_current_vs_temp.gif
Figure 16. Enable Current vs Ambient Temperature
TPS7B81 D005_startup.gif
VOUT = 5 V, CIN = 1 µF, COUT = 1 µF
Figure 18. Startup With Enable
TPS7B81 D006_load_transient.gif
VOUT = 5 V, CIN = 1 µF, COUT = 1 µF,
IOUT = 1 mA → 100 mA → 1 mA, slew rate = 1 mA/µs
Figure 20. Load Transient
TPS7B81 psrr_3v3.gif
VOUT = 3.3 V, CIN = 0 µF, COUT = 10 µF
Figure 22. PSRR vs Frequency
TPS7B81 D014_SLVSDQ0.gif
Figure 24. Output Capacitance vs ESR Stability
