9.2.2 Detailed Design Procedure

Unlike optocouplers, which require external components to improve performance, provide bias, or limit current, the ISO672xB devices only require two external bypass capacitors to operate.

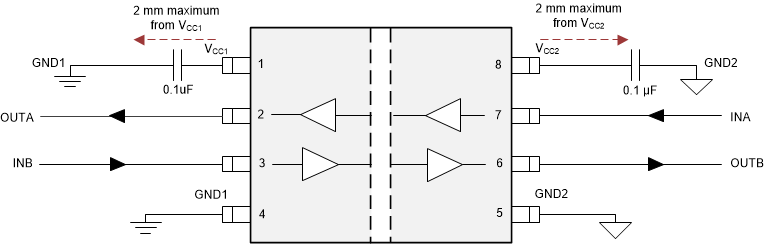

GUID-26FB50A4-6C78-4F74-AA05-A6B284882331-low.gifFigure 9-2 Typical ISO672xB Circuit Hook-up
