7.14.3 Typical Characteristics, PBTL Configuration

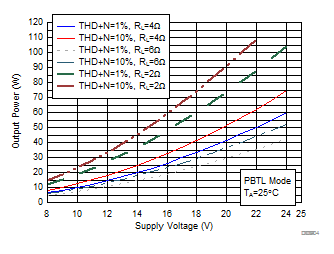

TAS5755M D004_SLOS982.gifFigure 32. Output Power vs Supply Voltage

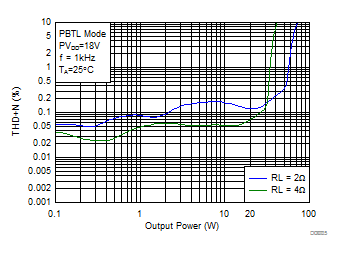

TAS5755M D035_SLOS982.gifFigure 34. Total Harmonic Distortion + Noise vs Output Power (PBTL Mode)
TAS5755M C037_PBTLTHDvFreq12V4R8R6R.pngFigure 36. Total Harmonic Distortion vs Frequency (PBTL Mode)
TAS5755M C041_PBTLTHDvFreq24V4R8R6R.pngFigure 38. Total Harmonic Distortion vs Frequency (PBTL Mode)
TAS5755M C034_PBTLEffvPo12V18V24V6R.pngFigure 40. Efficiency vs Output Power (PBTL Mode)
TAS5755M C036_PBTLPVDDvICN8Vto24V4R6R8R.pngFigure 42. Idle Channel Noise vs Supply Voltage (PBTL Mode)

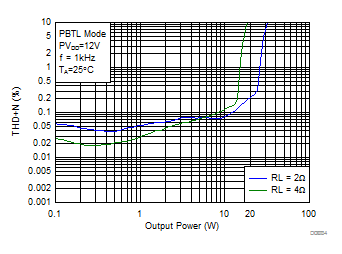

TAS5755M D034_SLOS982.gifFigure 33. Total Harmonic Distortion + Noise vs Output Power (PBTL Mode)

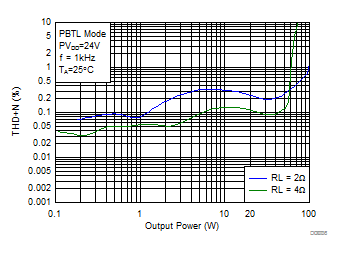

TAS5755M D036_SLOS982.gifFigure 35. Total Harmonic Distortion + Noise vs Output Power (PBTL Mode)
TAS5755M C038_PBTLTHDvFreq18V4R8R6R.pngFigure 37. Total Harmonic Distortion vs Frequency (PBTL Mode)
TAS5755M C035_PBTLEffvPo12V18V24V4R.pngFigure 39. Efficiency vs Output Power (PBTL Mode)

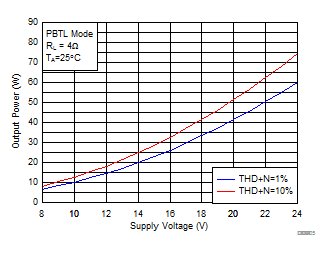

TAS5755M D005_SLOS982.gifFigure 41. Power vs Supply Voltage (PBTL Mode)
