7.6 Typical Characteristics

VVDD = 20V, RRDM = 115 kΩ, RRTZ = 140 kΩ, VSET = 0 V, and TJ = TA = 25 ⁰C (unless otherwise noted)

Figure 7-1 VDD Bias-Supply Current vs. VDD Bias-Supply Voltage

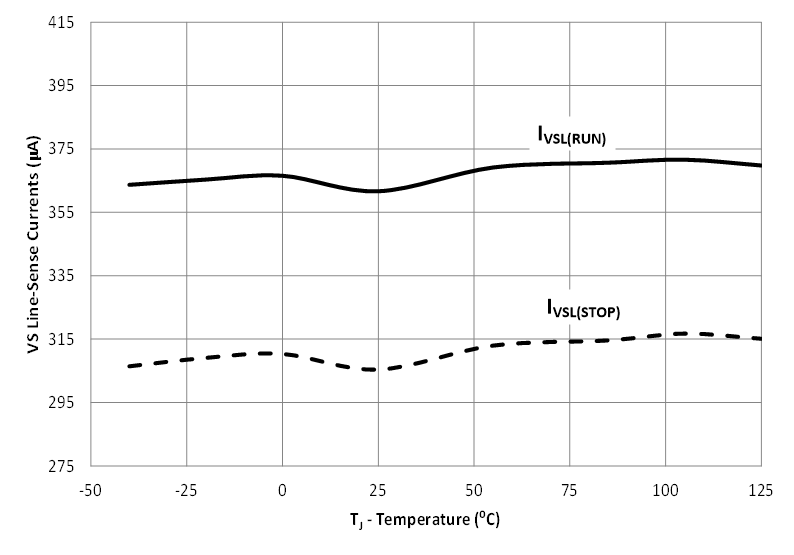

Figure 7-3 VS Line-Sense Currents vs. Temperature
Figure 7-5 CS Peak-Power Threshold for VVS > VVSLV(UP) vs. VS Line-Sense Currents

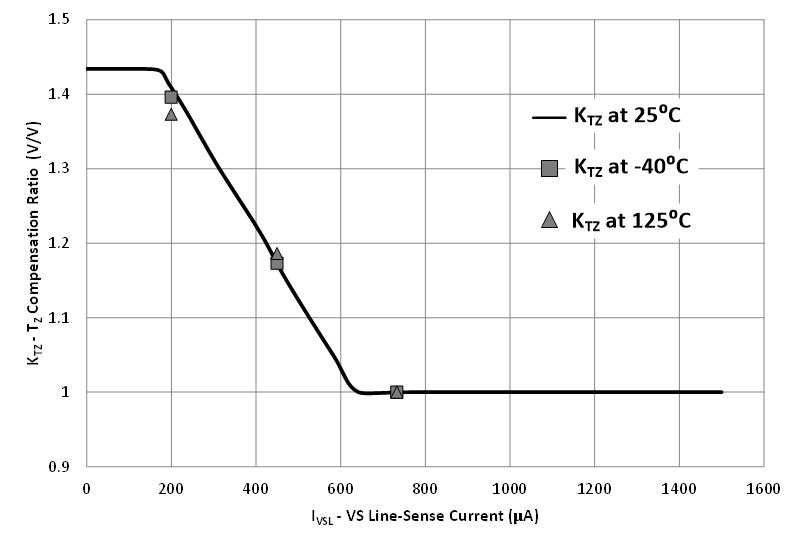

Figure 7-7 tZ Compensation Ratio (KTZ) vs. VS Line-Sense Currents

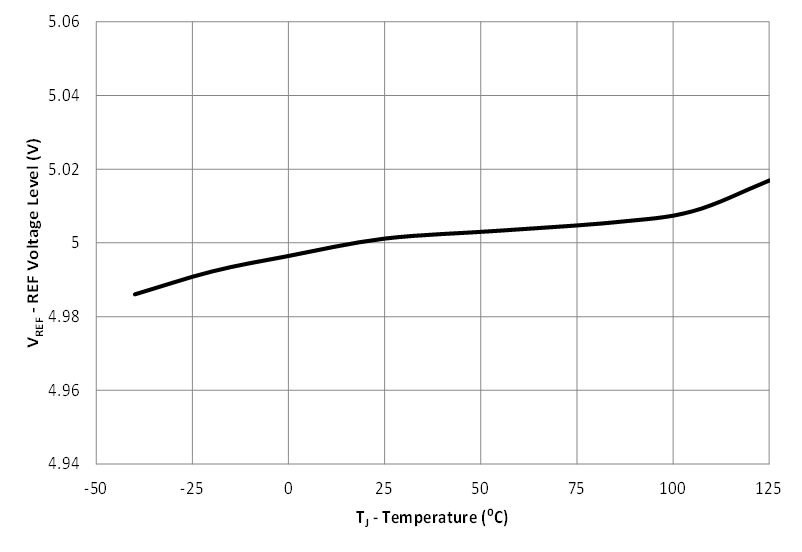

Figure 7-9 REF Voltage vs. Temperature
Figure 7-11 FLT OTP Thresholds vs. Junction Temperature
A.
Figure 7-13 Max. XCD Discharge Current vs. Junction Temperature
Figure 7-2 VDD Bias-Supply Current vs. Temperature

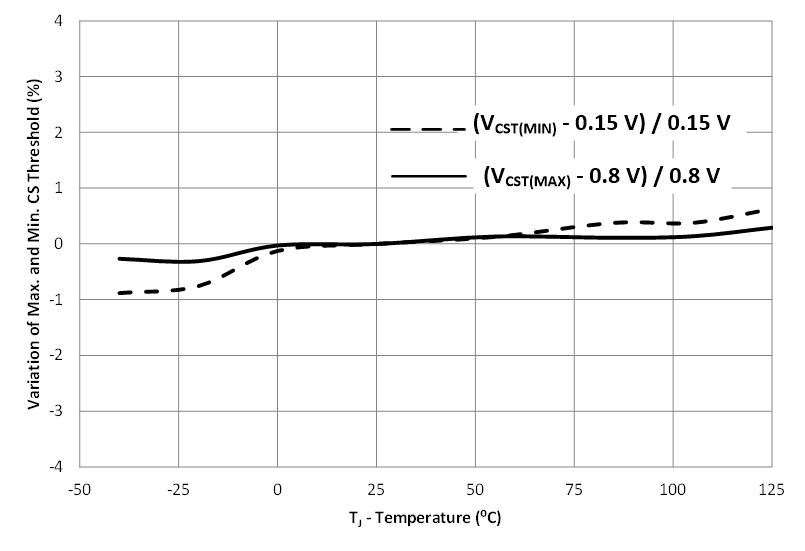

Figure 7-4 Percentage Variation of Maximum and Minimum CS Thresholds vs. Temperature
A.

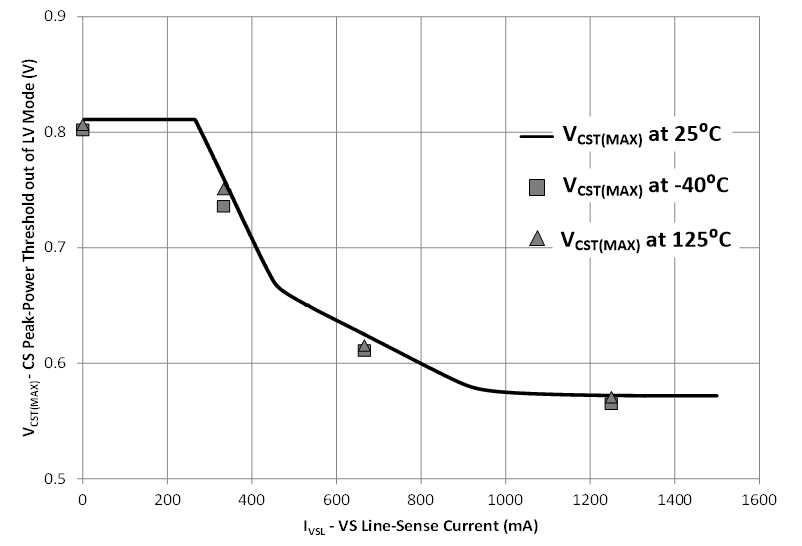

Figure 7-6 CS Peak-Power Threshold for VVS < VVSLV(LR) vs. VS Line-Sense Currents
Figure 7-8 VS Over-Voltage Threshold vs. Temperature
Figure 7-10 P13 Voltage vs. Temperature

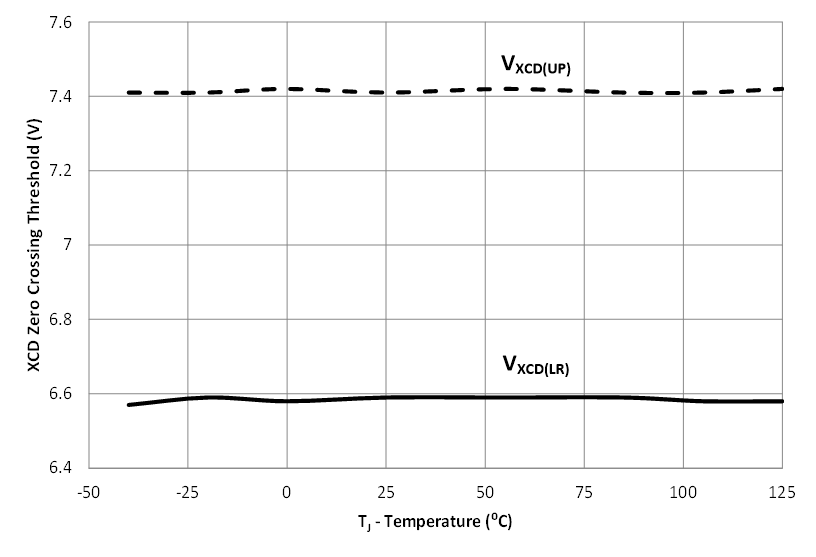

Figure 7-12 XCD Thresholds vs. Junction Temperature
A.
Figure 7-14 BSW Peak Current Thresholds vs. Junction Temperature
