4.4 Integrated and Gate Driver H-Bridges

TI motor drivers can also support H-bridge driving with integrated gate drivers or gate driving solutions. Some drivers, such as DRV8714-Q1 and DRV8718-Q1 gate drivers, have H-Bridge control mode, which can enable driving two to four H-bridges. If PWM control is not required, the two H-bridge gate drivers can even be controlled directly through SPI control registers. In this mode, the active freewheeling recirculation path (low-side or high-side) is configurable in SPI register.

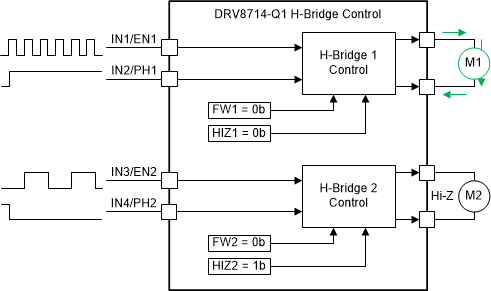

GUID-51BB8BA7-815E-47B5-A9F2-0C8E7F359982-low.gif Figure 4-9 H-Bridge Control Example

For space-constrained solenoid applications, the DRV8243-Q1 integrated H-bridge driver can be configured as a single H-bridge driver or as two independent half-bridge drivers. This device can also control bridges through SPI specific register bits. Additionally, the user can configure between an AND/OR logical combination of each external input with their equivalent register bit. For example, pin input can be ANDed with SPI_IN register bit, for certain configuration bit.

The DRV8243-Q1 device is part of device family, pin to pin compatibility, scalable RDSON to support different loads, and also includes the DRV814x-Q1 integrated half-bridge drivers with half RDSON of DRV824x-Q1 devices.

The DRV887x-Q1 integrated H-bridge driver family, which includes the DRV8873-Q1, includes H-bridges that can support up to 10-A.
