2.5 Efficiency Improvement With Auto-Torque

Table 2-5 shows the thermal performance improvements as a result of auto-torque. The thermal images are captured at the following condition:

VM = 24 V, 1/16 microstep, 4A full-scale current, 3000 pps speed, No load, Room temperature ambient

Table 2-5 Thermal Performance Improvement With Auto-Torque

Thermal image: auto-torque disabled, IC temperature = 114.3 °C

 Thermal image: auto-torque enabled, IC temperature = 37 °C

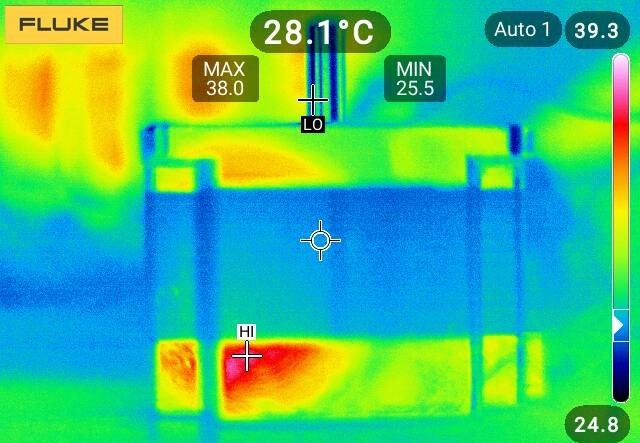

Thermal image: auto-torque disabled, motor temperature = 65.8 °C Thermal image: auto-torque enabled, motor temperature = 28.1 °C

Reduction in IC and motor temperature as a result of auto-torque improves long term reliability of the stepper motor system.
