4.3 Output Turn-On

Figure 4-3 shows the SW output voltage turn-on from the SW enable for the TPS54120EVM with VIN = 12 V, SW OUT = 4.1 V, LDO OUT = 3.3 V, and IOUT = 400 mA, Fswitching = 480 kHz.

GUID-D39F218B-CA91-42C3-A99D-6F2A6A75DD72-low.gifFigure 4-3 Switcher Converter Output Voltage Turn-On, SW Enable

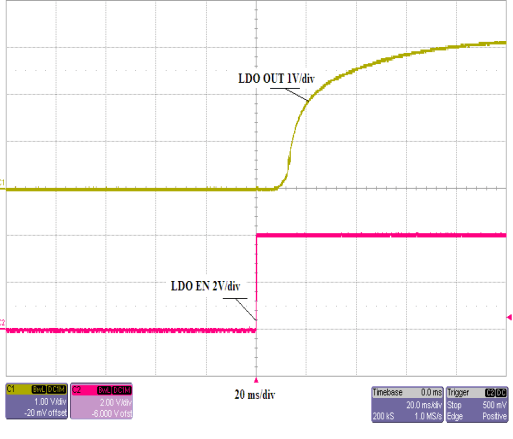

Figure 4-4 shows the LDO output voltage turn-on from the LDO enable for the TPS54120EVM with VIN = 12 V, SW OUT = 4.1 V, LDO OUT = 3.3 V, and IOUT = 400 mA, Fswitching = 480 kHz.

GUID-FC446209-71B6-495A-8D3C-0F726A9CC734-low.gifFigure 4-4 LDO Output Voltage Turn-On, LDO Enable

Figure 4-5 shows the LDO output voltage turn-on of TPS54120 from the SW enable for the TPS54120EVM with VIN = 12 V, SW OUT = 4.1 V, LDO OUT = 3.3 V, and IOUT = 400 mA, Fswitching = 480 kHz.

GUID-64021E74-4CB7-41C2-8063-7C6A59AFA786-low.gifFigure 4-5 LDO Output Voltage Turn-On, SW Enable
