4.8 ADC system noise

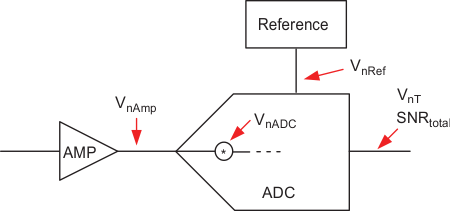

GUID-20210718-CA0I-DX6D-HZBM-Q08H4S0J4CZH-low.gif Figure 4-8 ADC noise.
Equation 77. V F S R _ R M S =   V F S R × 0.707 2
Equation 78. S N R A D C =   20 × log ⁡ V F S R _ R M S V n A D C
Equation 79. V n A D C =   V F S R _ R M S 10 S N R A D C 20
Equation 80. V n T =   V n A D C 2 + V n A m p 2 + V n R e f 2
Where

VFSR = the ADC full scale range from the data sheet

VFSR_RMS = This finds the maximum RMS amplitude of a sine wave applied to an ADC. Dividing the ADC full scale range by 2 converts peak-to-peak to peak. Multiplying by 0.707 converts to RMS.

SNRADC = Data converter signal to noise ratio specification from data sheet

VnADC = Noise in volts RMS derived from the SNR equation. Converting noise to volts allows it to be combined with amplifier and reference noise.

VnAmp = Amplifier noise in volts RMS calculated or simulated using data sheet parameters

VnRef = Reference noise in volts RMS calculated or simulated using data sheet parameters

VnT = Total noise in volts RMS calculated by combining ADC, amplifier, and reference noise
