SNOAA79 June   2021 DAC121S101QML-SP , LMP7704-SP , TPS7A4501-SP



  1.   1
  2.   2
  3.   3
  4.   4
  5.   5
  6.   6
  7.   7
  8.   8
  9.   9
  10.   10
  11.   11

DC Simulation Results

Load Current

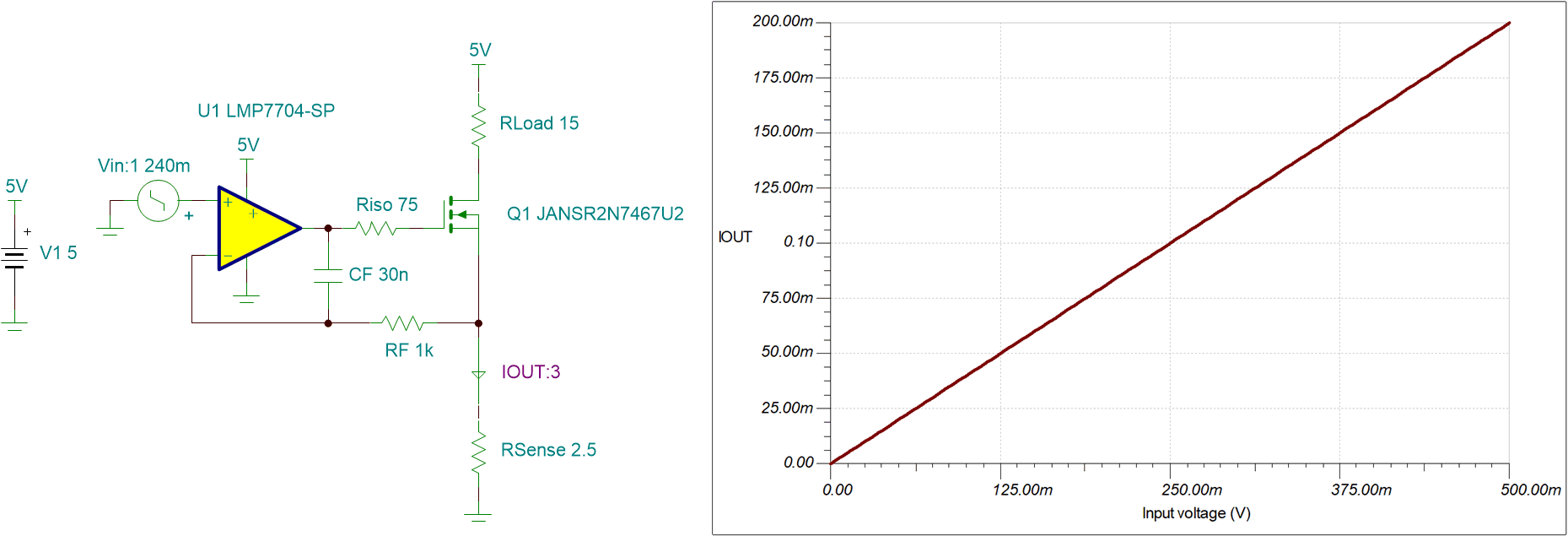

The following plot shows the load current as a function of the input voltage (DAC output voltage). The current goes from 0mA to 200mA as the input voltage changes from 0mV to 500mV. This meets the design specifications.
