7.2 Synchronizing Input Level Shift

Some regulators have a synchronizing input for locking the switching frequency to the system clock. One of the level shifters shown in Figure 7-2 can be used to provide this function.

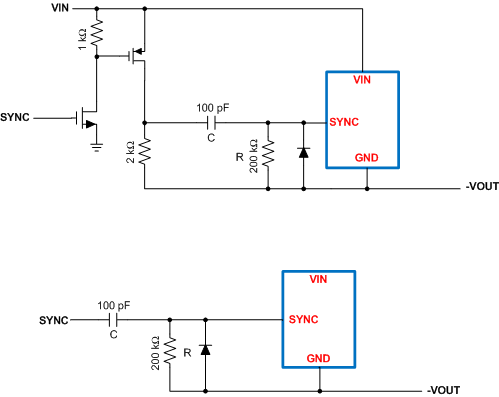

GUID-911BD07F-E609-4136-AFB7-FB1ED6BDEDD4-low.gif Figure 7-2 Synchronization Level Shifters

The lower schematic shows a simple solution, but requires a low impedance drive signal. The solution in the upper schematic although more complex allows the use of ordinary logic drive. Also, this solution requires that the SYNC input can withstand VIN + |VOUT|. In all cases the RC time constant should be much longer than the switching period.
