4.4
Steady State Waveforms

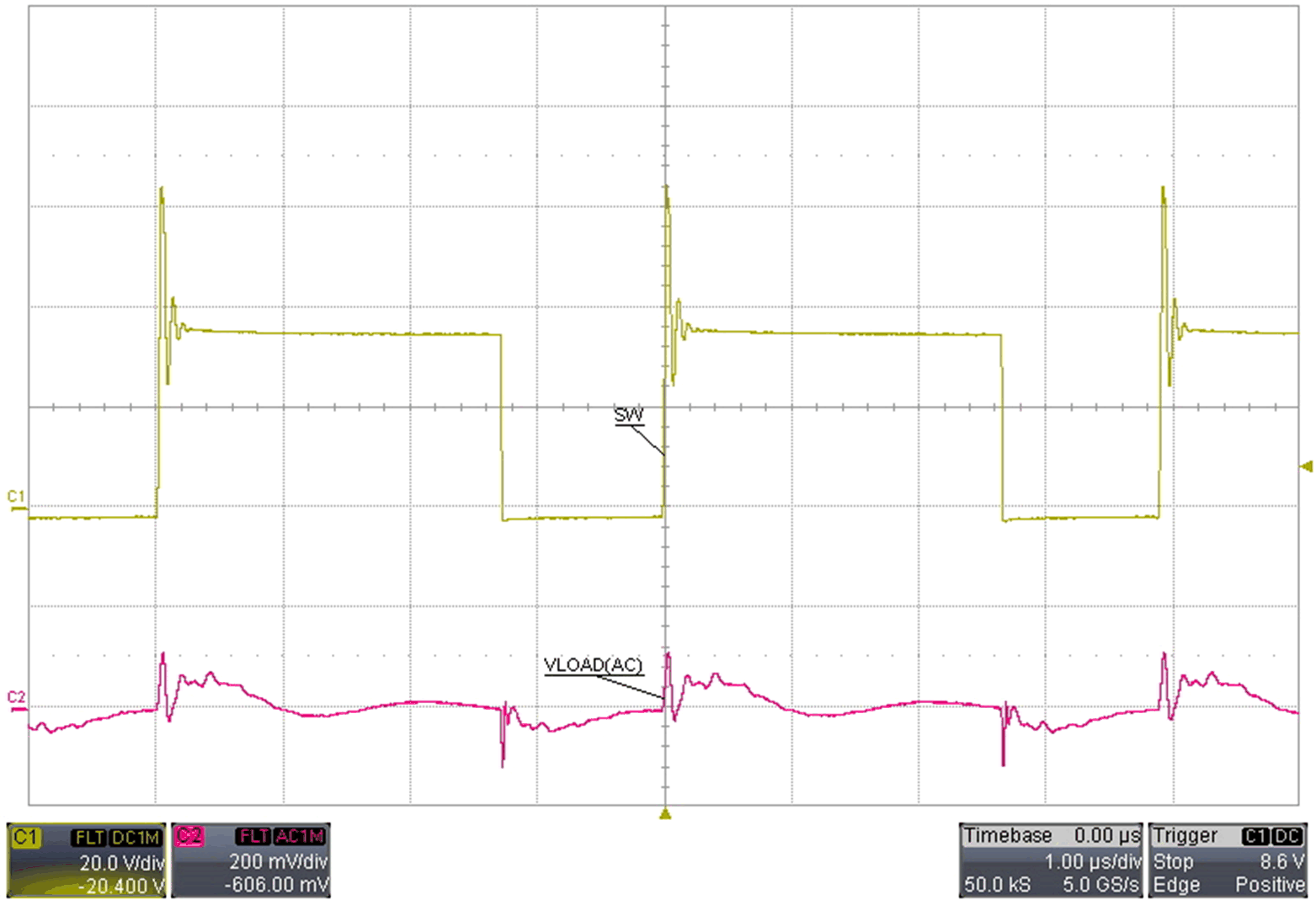

Figure 4-4
Steady State, V
SUPPLY
= 18V, I
LOAD
= 4A
Figure 4-5
Steady State, V
SUPPLY
= 24V, I
LOAD
= 4A
Figure 4-6
Steady State, V
SUPPLY
= 36V, I
LOAD
= 4A
