2.3 LPDDR4 Interface Schematics

The LPDDR4 interface schematics vary, depending upon the number of ranks implemented. General connectivity is straightforward and consistent between the implementations. Figure 2-1 illustrates a 32-bit, single-rank LPDDR4 implementation. If dual rank is required, the additional chip select is included. Figure 2-2 illustrates a 32-bit, dual-rank LPDDR4 implementation. On select devices, 16-bit single-rank LPDDR4 implementation are support, see Figure 2-3.

Note: Though LPDDR4 SDRAMs pin out two separate channels, independent channel use is not supported by this processor.

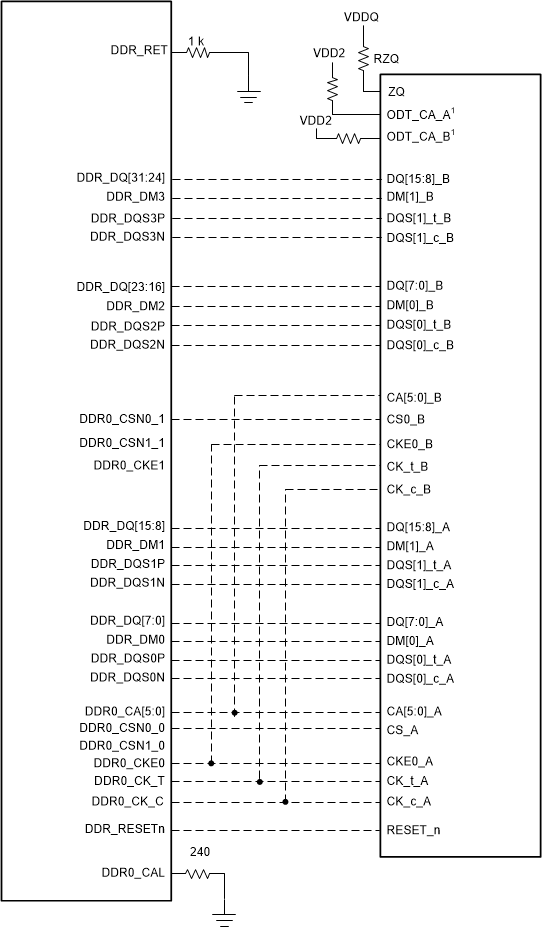

J722S, AM67x, TDA4VEN-Q1, TDA4AEN-Q1 32-Bit, Single-Rank LPDDR4 Implementation Figure 2-1 32-Bit, Single-Rank LPDDR4 Implementation
J722S, AM67x, TDA4VEN-Q1, TDA4AEN-Q1 32-Bit, Dual Rank LPDDR4 Implementation Figure 2-2 32-Bit, Dual Rank LPDDR4 Implementation
J722S, AM67x, TDA4VEN-Q1, TDA4AEN-Q1 16-Bit, Single Rank LPDDR4 Implementation Figure 2-3 16-Bit, Single Rank LPDDR4 Implementation
