3.5.1 UFS Interface Schematic

The UFS interface schematics vary, depending on the number of lanes implemented, as depending if the memory is embedded or removable. Depending upon the device, each UFS interface can include up to two data lanes (each direction). General connectivity is straightforward and consistent between implementations. Figure 3-10 illustrates a UFS system using a single lane. The TX and RX signals are implemented as differential pairs. The REF_CLK and RSTN signals are single-ended signals. These single ended are slow speed interfaces, and nothing special is required for PCB layout of these signals.

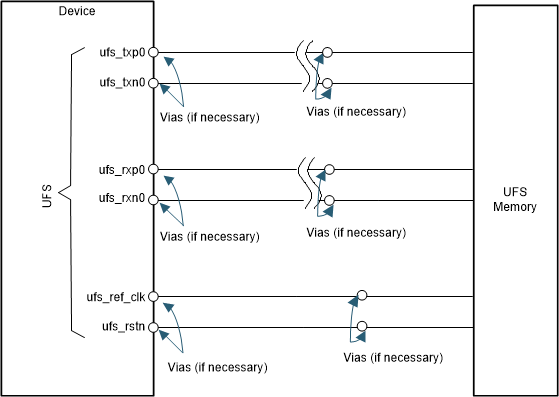

UFS Interface High Level Schematic Figure 3-10 UFS Interface High Level Schematic
