3.2.1.1 Support Components

AC coupling capacitors are required on all the DP data pairs. Table 3-5 shows the requirements for these capacitors.

Table 3-5 DP AC Coupling Capacitors Requirements
ParameterMINTYPMAXUnit
PCIe AC coupling capacitor value175220265nF
PCIe AC coupling capacitor package size04020603EIA (1), (2)
(1) EIA LxW units, for example, a 0402 is a 40 × 20mils surface mount capacitor.
(2) Make the physical size of the capacitor as small as practical. Use the same size on both lines in each pair placed side by side.

A typical DP interface may also common mode chokes for suppression of high-frequency noise. Because DP can interface to external monitors, ESD protection is also included in the example.

Table 3-6 DP Component Reference
DeviceSupplierPart NumberComment
ESDTITDP1E05U06Minimize Capacitance
CMFMurataDLW21SZ900HQ2Support Target Data Rates

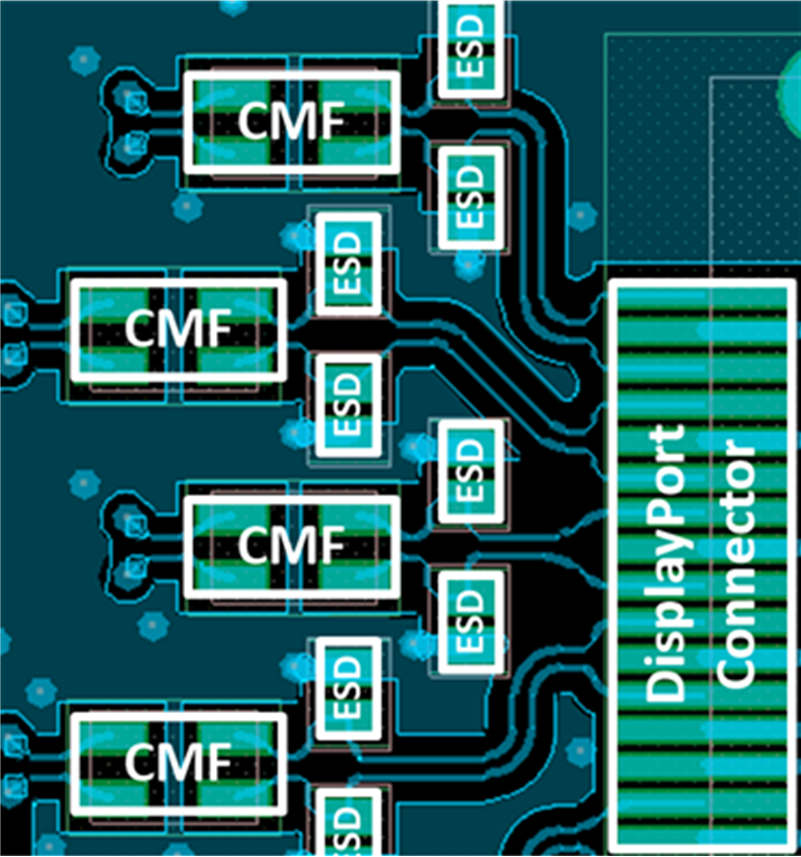

Figure 3-5 presents the placement diagram for the DisplayPort interface.

DisplayPort PlacementFigure 3-5 DisplayPort Placement
