Once the locked rotor parameters are measured the stator inductance process starts (Figure 7-39).
For the Stator Inductance state, the steps are the same for both motors. For more information, see Section 7.6.7.

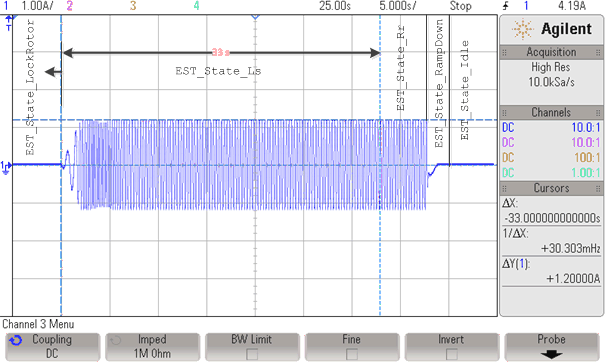

Figure 7-40 shows how the current for an ACIM motor during the Ls state and leading into the next states.
