The InstaSPIN library is executed at a fixed frequency from a single interrupt service routine. By default this main ISR is triggered by an end of conversion interrupt from the ADC. This conversion is first started by the PWM module at a fixed rate. Once in the ISR, mainISR() for this example, a series of function calls are needed in order to get data from the ADC and to call the functions in ROM. The following code is an example of this:
interrupt void mainISR(void)
{
// acknowledge the ADC interrupt
HAL_acqAdcInt(halHandle,ADC_IntNumber_1);
// convert the ADC data
HAL_readAdcData(halHandle,&gAdcData);
// run the controller
CTRL_run(ctrlHandle,halHandle,&gAdcData,&gPwmData);
// run the driver -- set the pwm compare values
HAL_writePwmData(halHandle,&gPwmData);
// setup the controller
CTRL_setup(ctrlHandle);
return;
} // end of mainISR() function

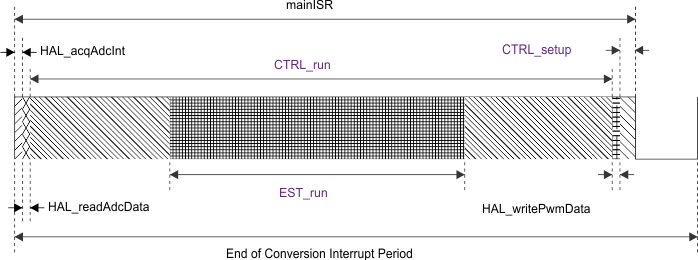

In order to describe the performance of InstaSPIN we will consider a top-level approach first, including these five function calls from the main ISR (see Figure 9-5).
