Setup

The UART interface must be connected between the CC3120 or CC3220 device and the main processor. Only two pins are required, UART TX and UART RX. Flow control is not required.

The common configuration that applies to all chipsets follows:

  • Baud rate of 921600bps
  • 8 bits
  • No parity
  • 1 stop bit

In addition, the nHib/nReset pin is required and it must be have the ability to be temporarily pulled to GND during a reset to make the device go into bootloader mode.

For the CC3220 device, an additional SOP1 pin must be pulled up during the device reset to make the device go into bootloader mode.

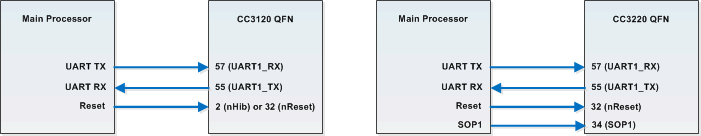

QFN_programming_setup.gifFigure 1. CC3120 and CC3220 QFN Programming Setup
