5.3.8 Step 8: Get SFLASH Storage Info

The same ROM bootloader fixes that were downloaded to the SRAM must also be programmed to the SFLASH. The main purpose is to have all fixes during the return-to-factory-default feature. The procedure for getting information from SFLASH storage follows:

  1. The main processor sends the Get Storage Info command. The user must provide the storage ID for the SFLASH.
  2. The CC3120 or CC3220 device responds with an Ack followed by the Storage Info response. The response includes the block size and number of blocks for the SFLASH.
  3. The main processor responds with an Ack.

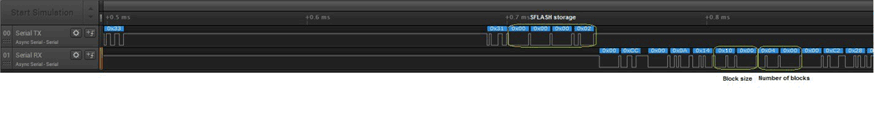

Figure 11 shows the Get SFLASH Storage Info command followed by an Ack and Storage Info response.

Get_SFLASH_storage.gifFigure 11. Get SFLASH Storage Info
