4.11 Adaptivity (Channel Access Mechanism) - EN 301 893

The measurements for Adaptivity is performed at normal environmental conditions only. The EUT are configured to the highest stated transmit output power level and tested on those channels and channel bandwidths specified in Table 4-1. Figure 4-2 shows the test setup for Adaptivity. The test results comply with the requirements and limits shown in the Load Based Equipment (LBE) and Short Control Signalling Transmissions (FBE and LBE) sections in CE Regulations for SRDs Operating in License-Free 2.4 GHz/5 GHz Bands [1] and are recorded in the test report. The test procedure for Adaptivity measurements is described in the following steps:

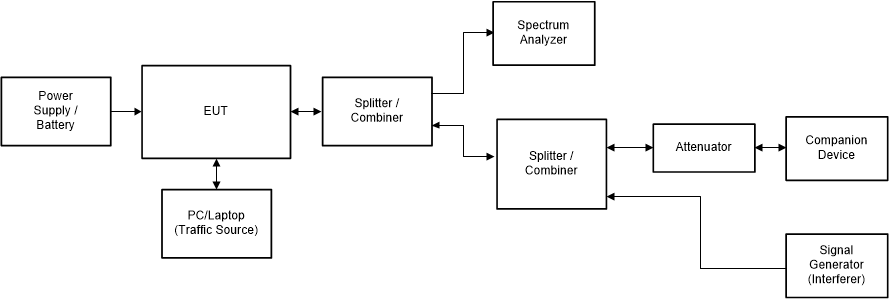

GUID-20200821-CA0I-07FR-SLXN-X3KBVR85WFKT-low.gif Figure 4-2 Test Setup for Adaptivity – EN 301 893
  1. Make the test setup as shown in Figure 4-2.
  2. Switch ON the EUT and other test equipment.
  3. For detailed test procedure, see clause 5.4.9.3 of EN 301 893 [4].
  4. Configure AP to the desired mode and channel using AP configuration tool.
  5. Use the CPERF Testing Tool from TI [16] to setup and configure the EUT. For setting and up configuring the EUT, see the CPERF Testing Tool instructions [16].
  6. Carry out the tests as per clause 5.4.9.3 of EN 301 893 [4] measurement procedure.
  7. Repeat the above for other data rates/modulations and also other desired channels.
  8. The Adaptivity test results comply with the requirements and limits shown in the Load Based Equipment (LBE) and Short Control Signalling Transmissions (FBE and LBE) sections in CE Regulations for SRDs Operating in License-Free 2.4 GHz/5 GHz Bands [1] for all the test cases.
