4.12 Dynamic Frequency Selection (DFS) - EN 301 893

The measurements for Dynamic Frequency Selection (DFS) are performed at normal operating conditions only. The EUT is configured to the highest sated transmit output power level and is tested on those channels and channel bandwidths specified in table 6. Figure 4-3 shows the test setup for DFS. The test results comply with the requirements and limits shown in the DFS Requirements and their Applicability and Limits on DFS Requirements tables in CE Regulations for SRDs Operating in License-Free 2.4 GHz/5 GHz Bands [1] and are recorded in the test report. The test procedure for DFS measurements is described in the following steps:

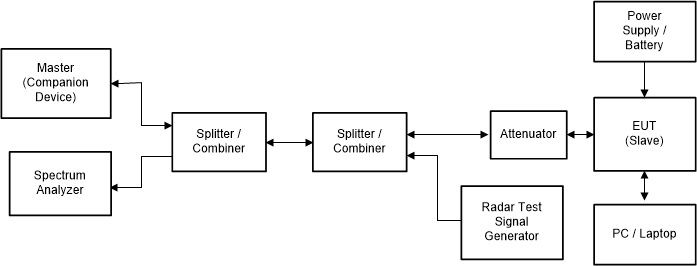

GUID-20200821-CA0I-0PSK-76XK-MBMNPVQHZMHV-low.gif Figure 4-3 Test Setup for DFS – EN 301 893
  1. Make the test setup as shown in Figure 4-3.
  2. Switch ON the EUT and other test equipment.
  3. For detailed test procedure, see clause 5.4.8.2 of EN 301 893 [4].
  4. Use the Radio Testing Tool [9] to setup and configure the EUT and the Companion device. For setting and up configuring the EUT, see the Radio Testing Tool User's Guide [10].
  5. Open the Radio Testing Tool [9] and setup the link with the EUT by using the Setup tab.
  6. Open the Tx tab and select the transmission mode to “packetized”.
  7. Configure the EUT to the desired parameters such as Channel/Frequency, Data Rate, Data Pattern, Power, and so forth).
  8. Click on “Start Tx Testing”.
  9. Open the Radio Testing Tool [9] and setup the link with the Companion device by using the Setup tab.
  10. Open the Rx tab and configure the Companion Device to the same parameters such as Channel/Frequency, Data Rate, Data Pattern, and so forth) used for EUT
  11. Click on “Start Rx Testing”.
  12. Observe the Rx statistics on the Rx tab of the Companion device. Make sure that the PER/FER is at 0%. If it requires adjust the Attenuator value in the test setup.
  13. Carry out the tests (Channel Shutdown) as per clause 5.4.8.2.1.6 of EN 301 893 [4] measurement procedure.
  14. Repeat the above for other data rates/modulations and also other desired channels.
  15. The DFS test results comply with the limits shown in the Limits on DFS Requirements table in CE Regulations for SRDs Operating in License-Free 2.4 GHz/5 GHz Bands [1] for all the test cases.
