2.3.5 SN74LVC1G66

This single analog switch is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak). Like all analog switches, the SN74LVC1G66 is bidirectional.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

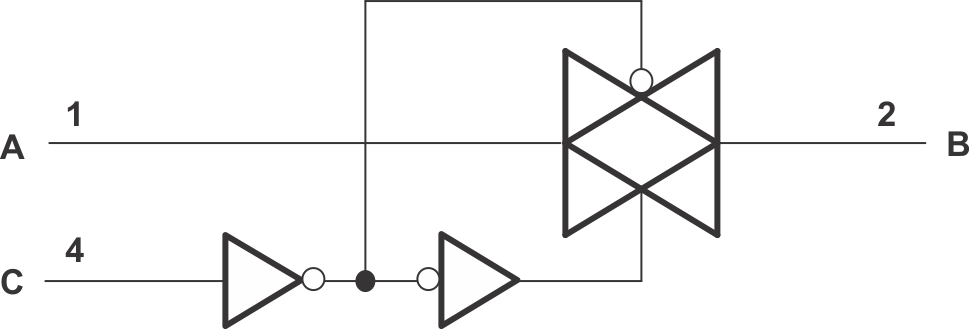

GUID-C4D225D6-CCA9-4FC9-8870-15A97C1D4AC8-low.gif Figure 2-19 SN74LVC1G66 Functional Block Diagram
