7.5.7.5.5 Program an Offset Value

After determining the desired value of RH+/-, RHOS, T+/-, and TOS, as documented in Calculate Relative Humidity Offset Value and Calculate Temperature Offset Value, determine the correct CRC checksum and send all three bytes to the HDC302x as illustrated in Figure 7-22 (along with an example scenario of +8.20% RH and –7.17°C). There can be a communication pause of at least 50ms after this command.

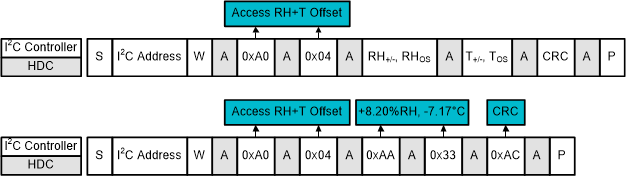

HDC3020 HDC3021 HDC3022 I2C Command Sequence: Programming RH and T Offset (Example With +8.20% RH and –7.17°C)Figure 7-22 I2C Command Sequence: Programming RH and T Offset (Example With +8.20% RH and –7.17°C)
