7.5.7.4.1 ALERT Output: Environmental Tracking of Temperature and Relative Humidity

The primary use of the ALERT output is to provide a signal notification of ambient temperature and relative humidity measurements that violate programmed thresholds. There are a total of four programmable thresholds for temperature and four for relative humidity, as documented in Table 7-4 and illustrated in Figure 7-16 below.

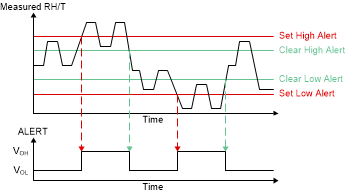

HDC3020 HDC3021 HDC3022 Graphical Illustration of ALERT Programmable Environmental ThresholdsFigure 7-16 Graphical Illustration of ALERT Programmable Environmental Thresholds

The four programmable thresholds are listed below

  1. Set High Alert: Asserts ALERT output when HDC302x measures a temperature or relative humidity level that has risen above this value.
  2. Clear High Alert: Deasserts the ALERT output caused by Set High Alert, once HDC302x measures a temperature or relative humidity level that has fallen below this value.
  3. Set Low Alert: Programmed value that asserts ALERT output when HDC302x measures a temperature or relative humidity level that has fallen below this value.
  4. Clear Low Alert: Programmed value that deasserts the ALERT output caused by Set Low Alert, once HDC302x measures a temperature of relative humidity level that has risen above this value.

If the user application uses the ALERT output for environmental tracking, the best practice is to program these four thresholds prior to any temperature or relative humidity measurement acquisition. Programming enough separation between the Set versus Clear thresholds is important because a small distance between Set and Clear levels can cause the ALERT pin to toggle high and low due to measurement noise.
