9.2.3 Application Curves

Figure 9-2 and Figure 9-3 were generated with scope probe parasitic capacitance of 50 pF.

VCC = 5 VVLogic = 5 VRPULLUP = 5.1 kΩ

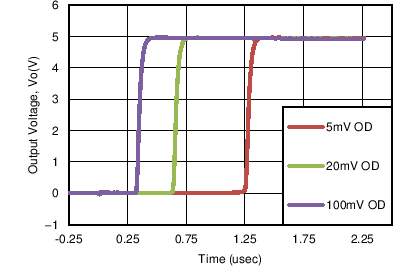

Figure 9-2 Response Time vs Output Voltage (Positive Transition)
VCC = 5 VVLogic = 5 VRPULLUP = 5.1 kΩ

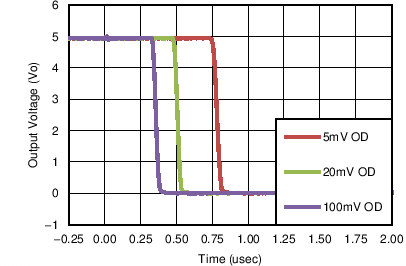

Figure 9-3 Response Time vs Output Voltage (Negative Transition)
