8.2.2 Application Curves

The following specifications apply to the circuit found in Figure 8-1 or Figure 8-2 with the appropriate modifications from Table 8-1. These parameters are not tested and represent typical performance only. Unless otherwise stated the following conditions apply: TA = 25°C.
The following specifications apply to the circuit found in Figure 8-1 or Figure 8-2 with the appropriate modifications from Table 8-1. These parameters are not tested and represent typical performance only. Unless otherwise stated the following conditions apply: TA = 25°C.GUID-4C0758B9-A009-42C7-90B4-F8A19990C17B-low.png
VOUT = 1.8 V
Figure 8-5 Efficiency. The following specifications apply to the circuit found in Figure 8-1 or Figure 8-2 with the appropriate modifications from Table 8-1. These parameters are not tested and represent typical performance only. Unless otherwise stated the following conditions apply: TA = 25°C.
VOUT = 1.8 V
Figure 8-7 Regulation, AUTO Mode
VOUT = 1.8 V
Figure 8-9 AUTO Mode Thresholds
VOUT = 1.2 V
Figure 8-11 Efficiency
VOUT = 1.2 V
Figure 8-13 Regulation, AUTO Mode
VOUT = 1.2 V
Figure 8-15 AUTO Mode Thresholds
VOUT = 3.3 V
Figure 8-17 Efficiency
VOUT = 3.3 V
Figure 8-19 Regulation, AUTO Mode
VOUT = 3.3 V
Figure 8-21 AUTO Mode Thresholds
VOUT = 1.8 VVIN = 4.2 V

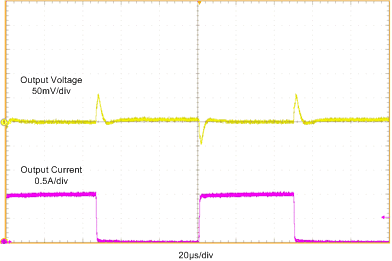

Figure 8-6 Load Transient In PWM
VOUT = 1.8 VVIN = 4.2 V
Figure 8-8 Load Transient In AUTO Mode
VOUT = 1.8 VVIN = 5 VIOUT = 1 A
Figure 8-10 Start-Up
VOUT = 1.2 VVIN = 4.2 V
Figure 8-12 Load Transients In PWM
VOUT = 1.2 VVIN = 4.2 V
Figure 8-14 Load Transients In AUTO Mode
VOUT = 1.2 VVIN = 5 VIOUT = 1 A
Figure 8-16 Start-Up
VOUT = 3.3 VVIN = 5 V
Figure 8-18 Load Transients In PWM Mode
VOUT = 3.3 VVIN = 5 V
Figure 8-20 Load Transients In AUTO Mode
VOUT = 3.3 VVIN = 5 VIOUT = 1 A
Figure 8-22 Start-Up
