8.2.3 Application Curve

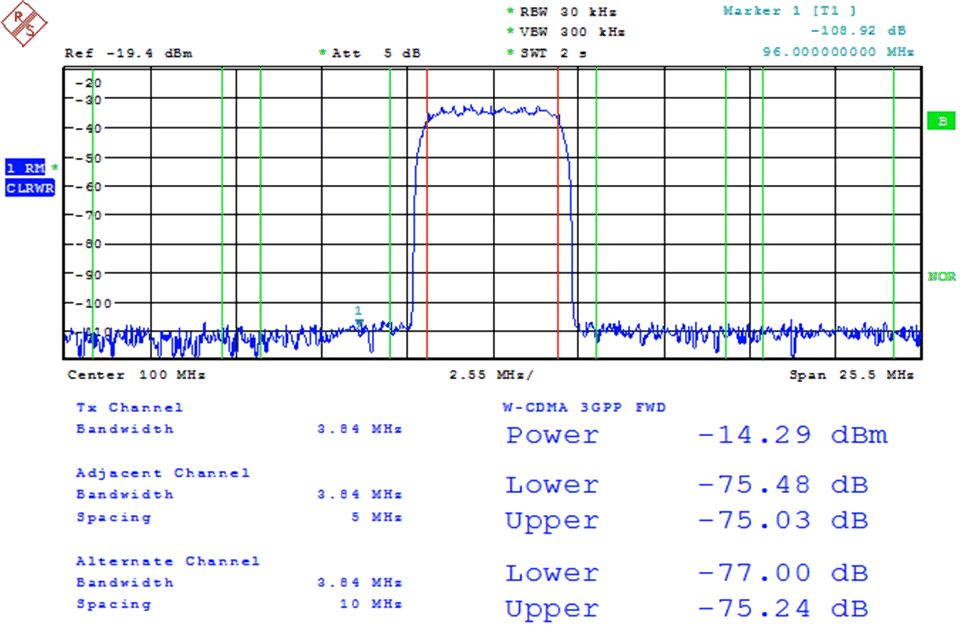

The DAC output ACPR of a single-carrier, WCDMA modulated signal centered at an intermediate frequency of 100 MHz is shown in Figure 74.

DAC3151 DAC3161 DAC3171 App_Plot.gifFigure 74. One Carrier WCDMA Signal ACPR at 100 MHz
