Typical Characteristics

at TA = 25°C, AVDD = 5V, DVDD = 3.3V, AINP = –50mV to 50mV (AMC1303x05x) or –250mV to 250mV (AMC1303x25x), AINN = AGND, and sinc3 filter with OSR = 256 (unless otherwise noted)

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Maximum Operating Common-Mode Input Voltage vs High-Side Supply
                        Voltage

Figure 6-6 Maximum Operating Common-Mode Input Voltage vs High-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Input
                        Bias Current vs Common-Mode Input Voltage

Figure 6-8 Input Bias Current vs Common-Mode Input Voltage

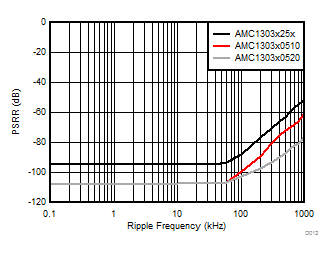

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Power-Supply Rejection Ratio vs Ripple Frequency

Figure 6-10 Power-Supply Rejection Ratio vs Ripple Frequency

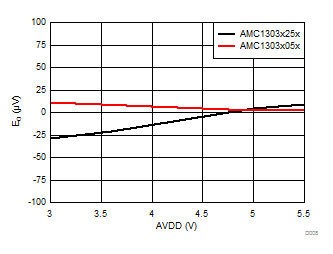

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Offset Error vs High-Side Supply Voltage

Figure 6-12 Offset Error vs High-Side Supply Voltage

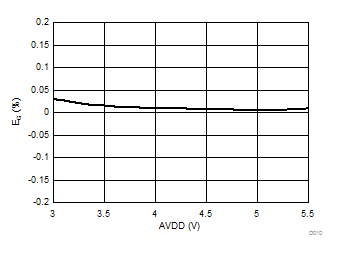

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Gain
                        Error vs High-Side Supply Voltage

Figure 6-14 Gain Error vs High-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Signal-to-Noise Ratio vs High-Side Supply Voltage
Capture time = 105ms
Figure 6-16 Signal-to-Noise Ratio vs High-Side Supply Voltage

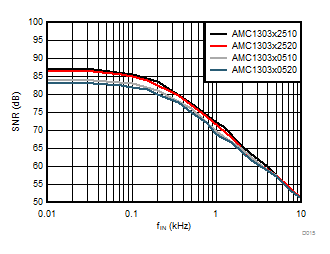

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Signal-to-Noise Ratio vs Input Signal Frequency
Capture time = 105ms
Figure 6-18 Signal-to-Noise Ratio vs Input Signal Frequency
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Signal-to-Noise Ratio vs Input Signal Amplitude
AMC1303x05x, capture time = 105ms
Figure 6-20 Signal-to-Noise Ratio vs Input Signal Amplitude
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Total
                        Harmonic Distortion vs Temperature
Capture time = 839ms
Figure 6-22 Total Harmonic Distortion vs Temperature

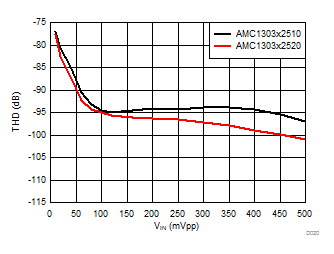

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Total
                        Harmonic Distortion vs Input Signal Amplitude
AMC1303x25x, capture time = 839ms
Figure 6-24 Total Harmonic Distortion vs Input Signal Amplitude
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Spurious-Free Dynamic Range vs High-Side Supply Voltage
Capture time = 105ms
Figure 6-26 Spurious-Free Dynamic Range vs High-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Spurious-Free Dynamic Range vs Input Signal Frequency
Capture time = 105ms
Figure 6-28 Spurious-Free Dynamic Range vs Input Signal Frequency
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Spurious-Free Dynamic Range vs Input Signal Amplitude
AMC1303x05x, capture time = 105ms
Figure 6-30 Spurious-Free Dynamic Range vs Input Signal Amplitude
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Frequency Spectrum With 35Hz Input Signal
AMC1303x0520, capture time = 839ms, VIN = 100mVPP
Figure 6-32 Frequency Spectrum With 35Hz Input Signal
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Frequency Spectrum With 35Hz Input Signal
AMC1303x2520, capture time = 839ms, VIN = 500mVPP
Figure 6-34 Frequency Spectrum With 35Hz Input Signal
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 High-Side Supply Current vs Temperature

Figure 6-36 High-Side Supply Current vs Temperature

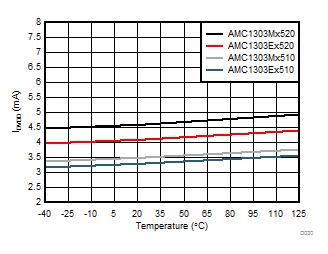

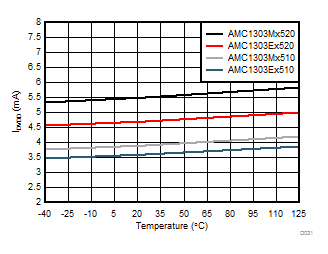

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Controller-Side Supply Current vs Temperature
DVDD = 3.3V
Figure 6-38 Controller-Side Supply Current vs Temperature
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Output Clock Frequency vs Temperature
AMC1303Mxx10
Figure 6-40 Output Clock Frequency vs Temperature
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Common-Mode Overvoltage Detection Level vs Temperature

Figure 6-7 Common-Mode Overvoltage Detection Level vs Temperature

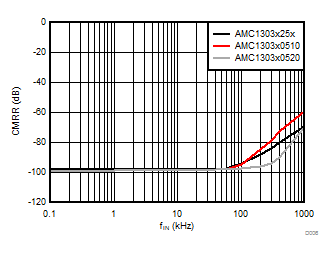

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Common-Mode Rejection Ratio vs Input Signal Frequency

Figure 6-9 Common-Mode Rejection Ratio vs Input Signal Frequency

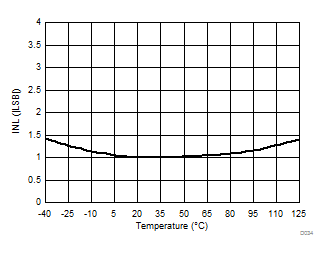

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Integral Nonlinearity vs Temperature

Figure 6-11 Integral Nonlinearity vs Temperature

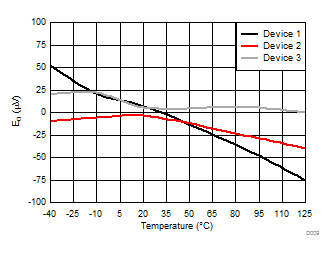

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Offset Error vs Temperature

Figure 6-13 Offset Error vs Temperature
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Gain
                        Error vs Temperature

Figure 6-15 Gain Error vs Temperature
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Signal-to-Noise Ratio vs Temperature
Capture time = 105ms
Figure 6-17 Signal-to-Noise Ratio vs Temperature
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Signal-to-Noise Ratio vs Input Signal Amplitude
AMC1303x25x, capture time = 105ms
Figure 6-19 Signal-to-Noise Ratio vs Input Signal Amplitude
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Total
                        Harmonic Distortion vs High-Side Supply Voltage
Capture time = 839ms
Figure 6-21 Total Harmonic Distortion vs High-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Total
                        Harmonic Distortion vs Input Signal Frequency
Capture time = 839ms
Figure 6-23 Total Harmonic Distortion vs Input Signal Frequency

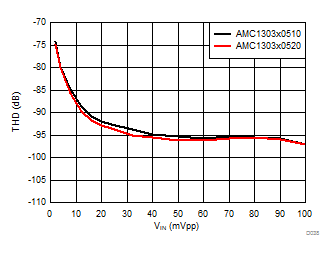

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Total
                        Harmonic Distortion vs Input Signal Amplitude
AMC1303x05x, capture time = 839ms
Figure 6-25 Total Harmonic Distortion vs Input Signal Amplitude
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Spurious-Free Dynamic Range vs Temperature
Capture time = 105ms
Figure 6-27 Spurious-Free Dynamic Range vs Temperature

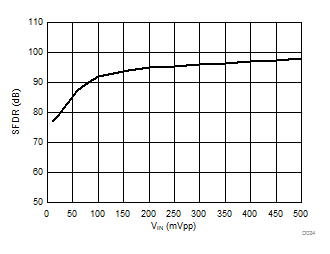

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Spurious-Free Dynamic Range vs Input Signal Amplitude
AMC1303x25x, capture time = 105ms
Figure 6-29 Spurious-Free Dynamic Range vs Input Signal Amplitude

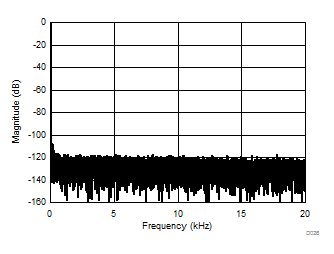

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Frequency Spectrum With 35Hz Input Signal
AMC1303x0510, capture time = 839ms, VIN = 100mVPP
Figure 6-31 Frequency Spectrum With 35Hz Input Signal
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Frequency Spectrum With 35Hz Input Signal
AMC1303x2510, capture time = 839ms, VIN = 500mVPP
Figure 6-33 Frequency Spectrum With 35Hz Input Signal
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 High-Side Supply Current vs High-Side Supply Voltage

Figure 6-35 High-Side Supply Current vs High-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Controller-Side Supply Current vs Controller-Side Supply Voltage

Figure 6-37 Controller-Side Supply Current vs Controller-Side Supply Voltage
AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Controller-Side Supply Current vs Temperature
DVDD = 5V
Figure 6-39 Controller-Side Supply Current vs Temperature

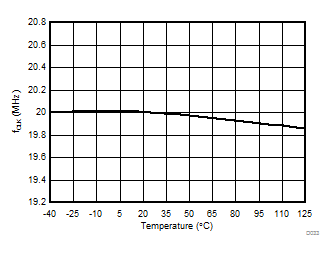

AMC1303E0510 AMC1303M0510 AMC1303E0520 AMC1303M0520   AMC1303E2510 AMC1303M2510 AMC1303E2520 AMC1303M2520 Output Clock Frequency vs Temperature
AMC1303Mxx20
Figure 6-41 Output Clock Frequency vs Temperature
