3.2 PinMux

For each peripheral with PinMux options, there is a PinMux submodule available in the Configurable Options panel. Inside the PinMux submodule, there are configurable options for each pin of the peripheral along with the instance of the peripheral. The solution for the PinMux is shown as the selected option for each pin. You can LOCK the solution to ensure it does not change as more modules/peripherals are added.

Figure 3-5 PinMux Submodule

Above the PinMux submodule, a configurable option named Use Case is also available to limit the available peripheral pins in the PinMux module. Selecting the Custom option for the Use Case adds a new configurable option named Pins Used, where you can select the peripheral pins for their specific custom use-case.

Figure 3-6 PinMux Custom Use Case

It is also possible to modify the PinMux submodule GUI to show not only the device pin names, but also the device GPIO number. To change the pin name representation:

  • Click the three dots at the top right corner of the C2000 SysConfig GUI
  • Select Preferences and Actions
  • In the Device Pin Labels options, select the Device Pin Name option

Figure 3-7 Device Pin Representation

The device PinMux summary is available inside the pinmux.csv auto-generated file.

GUID-0612E4A9-800F-402F-8AC0-DD9AA2B99F51-low.gif Figure 3-8 PinMux Summary CSV Auto-Generated File

The pinmux.csv file contains not only the selected PinMux options, but it also contains ALL AVAILABLE PinMux options for each pin.

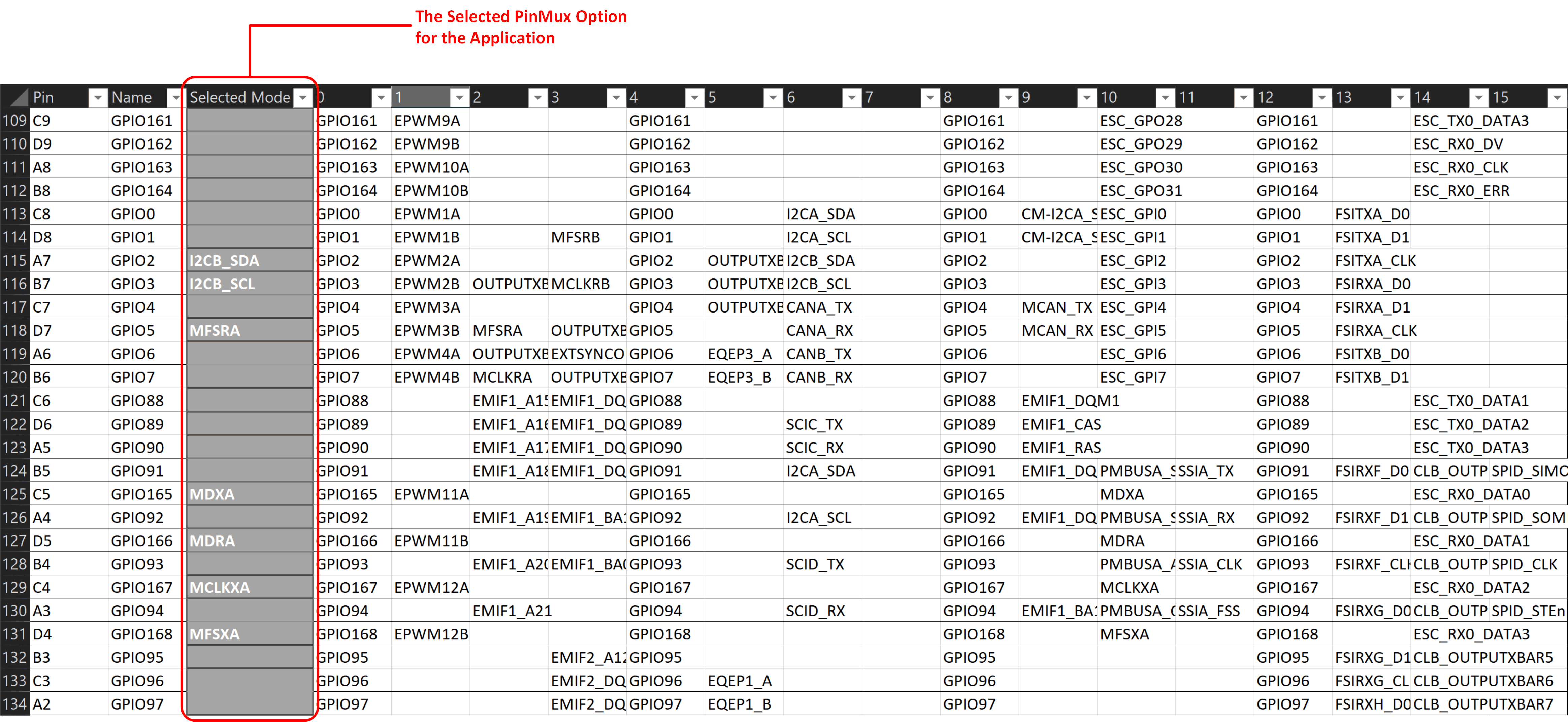

GUID-FD40704D-D0BD-442F-823B-8374C48D5012-low.gif Figure 3-9 pinmux.csv Auto-Generated File
