6 EFuse Solution Schematic for EFT protection

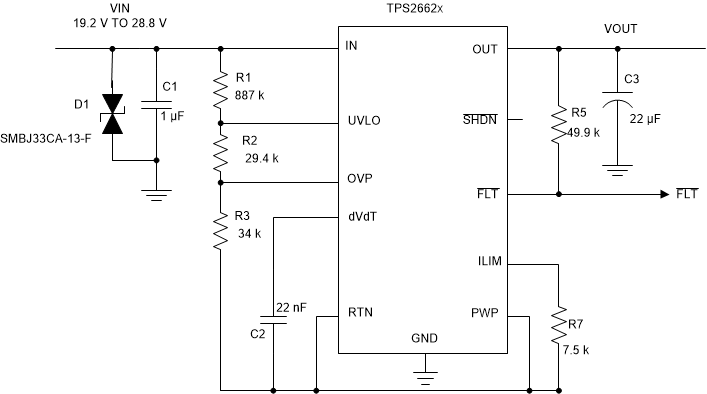

Figure 6-1 illustrates the schematic with TPS2662x device for EFT protection.

GUID-ECD5411A-C064-4D3D-B30A-5EE4A72C774C-low.gifFigure 6-1 Efuse Solution Schematic for EFT protection
