2.1.1 Example Uses of Different Inductor Shapes

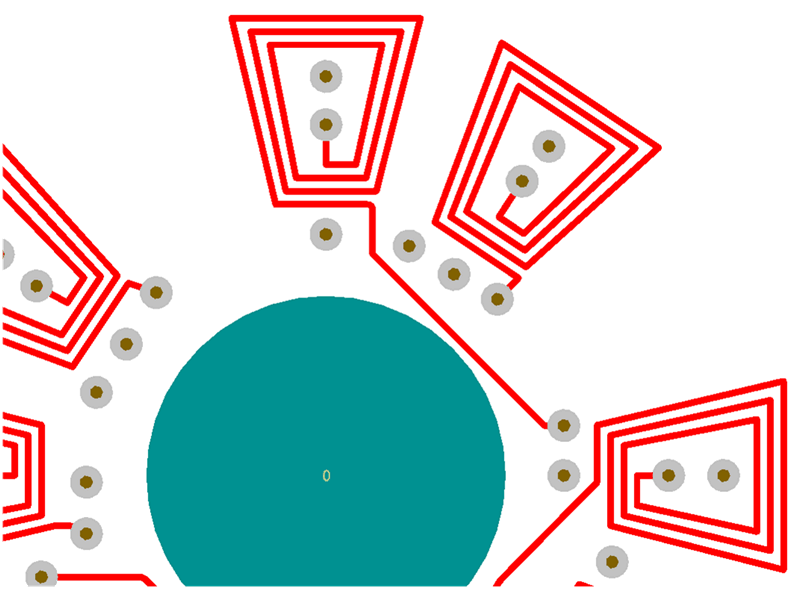

Figure 2-3 is an example of a trapezoidal inductor. For a physically small rotational measurement application, using a set of trapezoidal inductors increases the inductor area compared to circular coil; this increase in area increases the sensor inductance. This is especially useful for very small sensor sizes, which may be lower than the minimum inductance that the LDC can effectively drive. In such a case, it may be necessary to include an additional series SMT inductor if the inductance is not high enough. Refer to the Analog Wire blog post Inductive sensing: How to use a tiny 2mm PCB inductor as a sensor for more details.

GUID-77040E59-46FB-4804-A832-72EE3A280AA4-low.gifFigure 2-3 Trapezoidal Inductor for Rotational Encoding
