Multi-Layer Parallel Inductor

Minimizing the RS is necessary to obtain the highest resolution RP measurements. This also improves the L measurements for the LDC161x and LDC131x devices. With four or more layers users can start using the parallel coil structure shown in Figure 2-9 and Figure 2-10 to lower RS. This design may be useful for some applications which need to optimize RP measurements.

GUID-5139A46E-AC26-497E-86D6-3BA99552FF5F-low.gifFigure 2-9 Multi-layer Parallel Coil Schematic

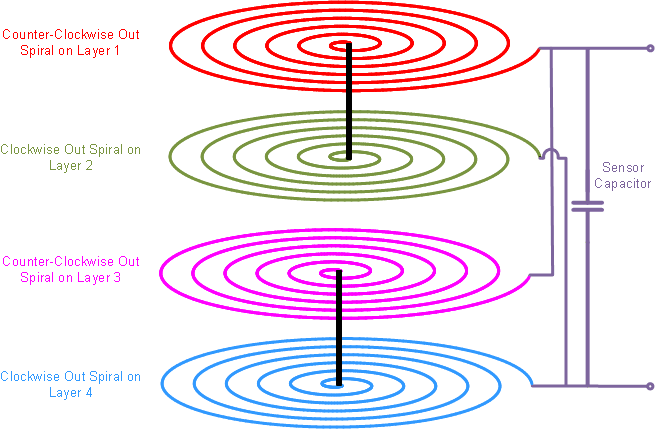

GUID-9D0C85A5-EADC-4B68-8D3B-C0B2F2E7CF87-low.gifFigure 2-10 Multi-layer Parallel Inductor
