6.9.3.2 Voltage Divider with Clamp

A very common circuit to measure a bipolar high voltage is a resistor divider with a clamping diode is shown in Figure 6-8. The problem is that the diode does not start clamping the negative until -600mV, well past the -300mV negative input voltage limit.

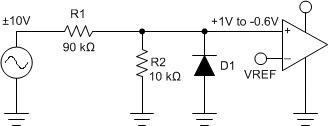

Commonly Used Two-Resistor Voltage Divider with Clamping DiodeFigure 6-8 Commonly Used Two-Resistor Voltage Divider with Clamping Diode
