5 Board Layout

This section provides the ESDEVM board layout. ESD224EVM is a 4-layer board of 370HR at 0.062” thickness. Layers 2 and 3 are simple ground planes and not shown here.

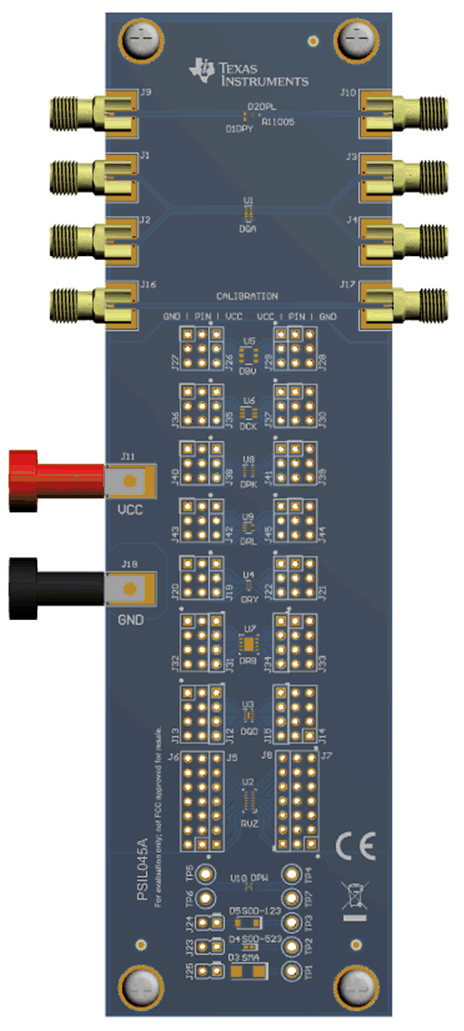

GUID-9D6154DA-80C8-4990-AA56-CF1B562ED240-low.gifFigure 5-1 3D Board Image
GUID-05593DF8-3E68-4CF8-9E50-6E0A7E072405-low.gifFigure 5-2 ESDEVM Top Layer
GUID-D5C0B147-5AC3-4D02-929E-A50F1F5AEB88-low.gifFigure 5-3 ESDEVM Bottom Layer
