This time constant occuring during the high-side off time explains the dependency on duty cycle. This duty cycle being constant, the bootstrap resistor and bootstrap capacitor should be tuned appropriately to achieve the desired start-up time. Increasing the bootstrap resistor values will increase the time constant leading to slower start-up time.

Additionally, the bootstrap resistor chosen must be able to withstand high power dissipation during the first charging sequence of the bootstrap capacitor. This energy can be estimated by Equation 7:

Equation 7. 12×Cboot×VCboot2

This energy is dissipated during the charging time of the bootstrap capacitor and can be estimated using Equation 8:

Equation 8. E≅3×Cboot×Rboot

This resistor is essential in limiting the peak currents through the bootstrap diode at start-up and limiting the dv/dt of HB-HS (high-side floating supply to the return high-side floating supply). The peak current through this resistor can be calculated using Equation 9:

Equation 9. Ipk=VDD-VBootDiodeRboot

Figure 3-4 shows the fast ramp up on VDD (CH4) and HB-HS (CH1) when using a 0-Ohm resistor which leads to undesired change in voltage on LO(CH3) and HO(CH2).

GUID-B6651563-BCAE-4358-A5E9-BE5D38F066DD-low.gifFigure 3-4 VDD/HB-HS Fast Ramp Up (Rboot = 0Ohms)

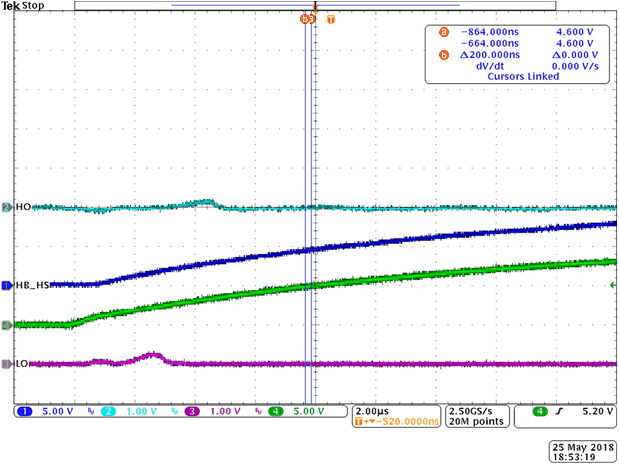

Figure 3-5 shows how using slightly higher resistor value (Rboot = 2.2Ohms) solve this issue. It is important to note that the bias rising rate observed in Figure 3-5 does not apply to all drivers.

GUID-7CD761F4-46F1-430B-9655-CFE4183EA3F2-low.gifFigure 3-5 VDD/HB-HS Fast Ramp Up (Rboot = 2.2Ohms)
