7.6 Routing

Routing of the sense signals must be done using a differential pair. In a differential pair, both signals are tightly coupled in the layout and the traces must run parallel from the shunt or sense resistor to the CSA at the input of the IC.

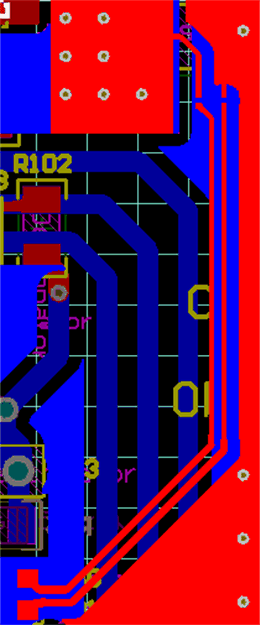

GUID-F35590C2-203F-4D5A-AFC7-72B604501C5B-low.gifFigure 7-5 Sense Amplifier Routing
